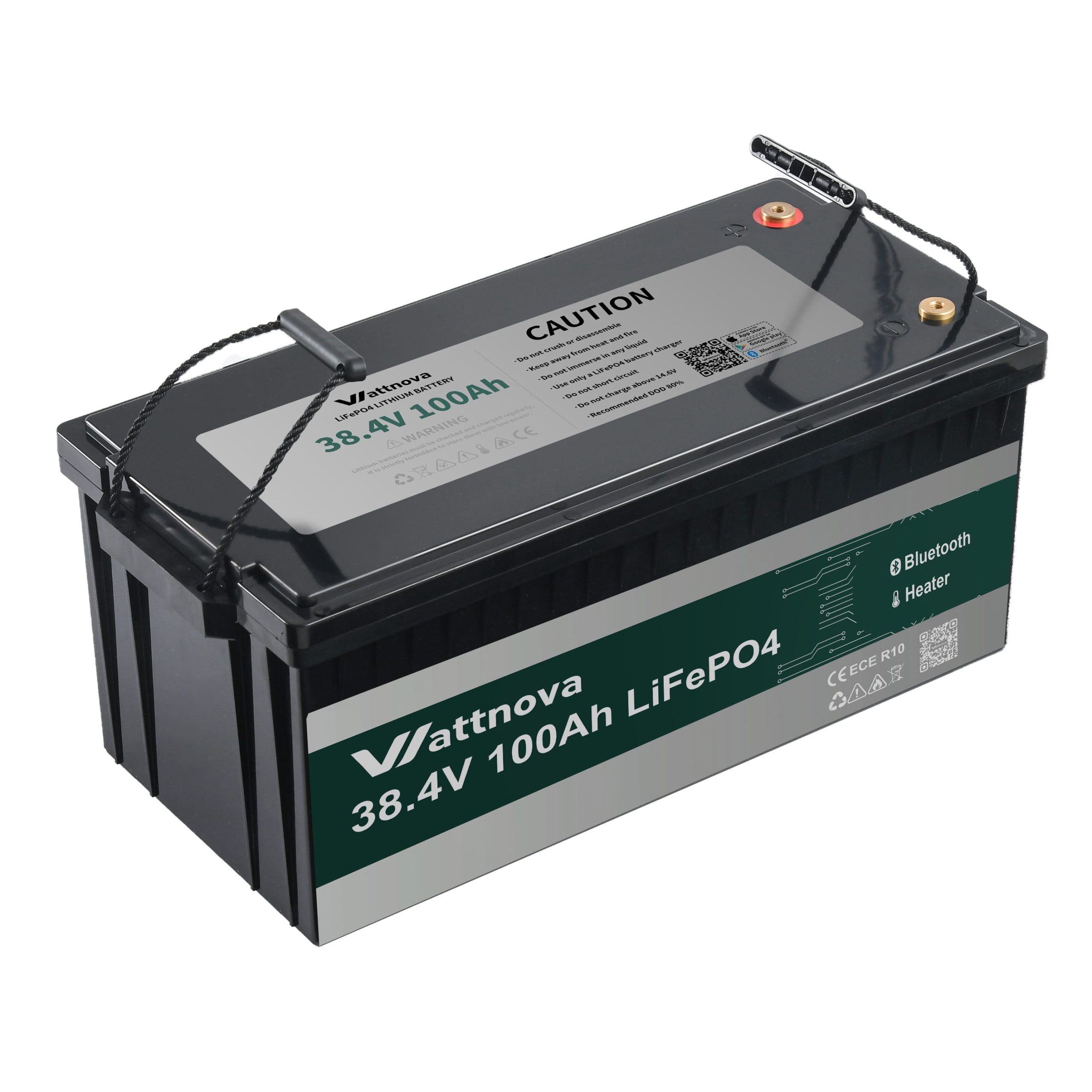

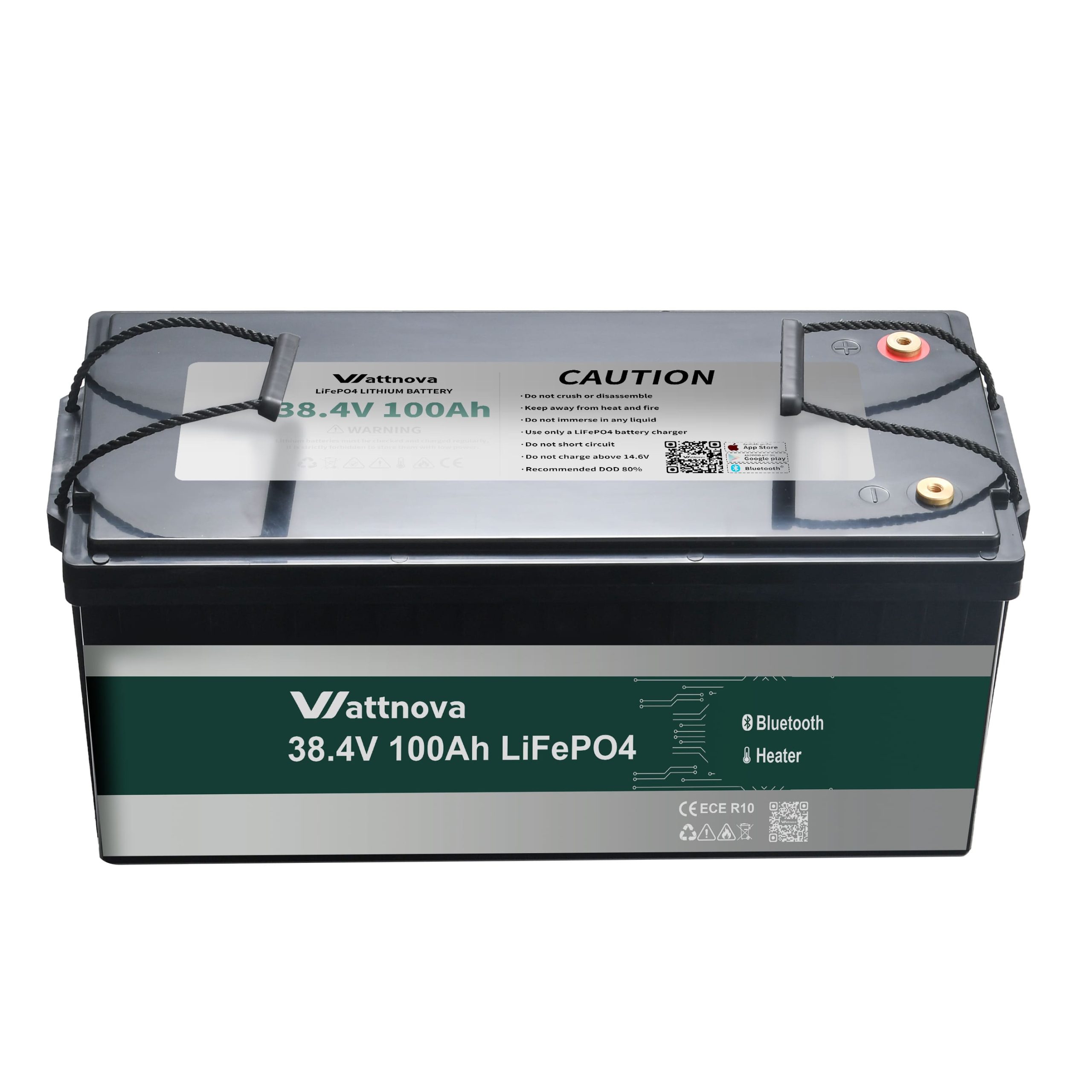

Wattnova 38.4V 100AH LiFePO4 Lithium Battery with Smart BMS and Bluetooth

Short Description:

· Model：W-36-100
· Dimensions: 522 × 240 × 221 mm, ABS case
· Grade A lithium iron phosphate prismatic cells
· High-voltage 36V system, suitable for high-power devices and long-distance power supply
· Over 4,000 cycles, for a service life exceeding ten years
· Bluetooth BMS and real-time monitoring, easily controllable via app
· Local German warehousing and EU certifications (CE, RoHS, UN38.3, etc.)
· 6-year manufacturer's warranty.

Product Detail

WATTNOVA 38.4V 100Ah Lithium Battery

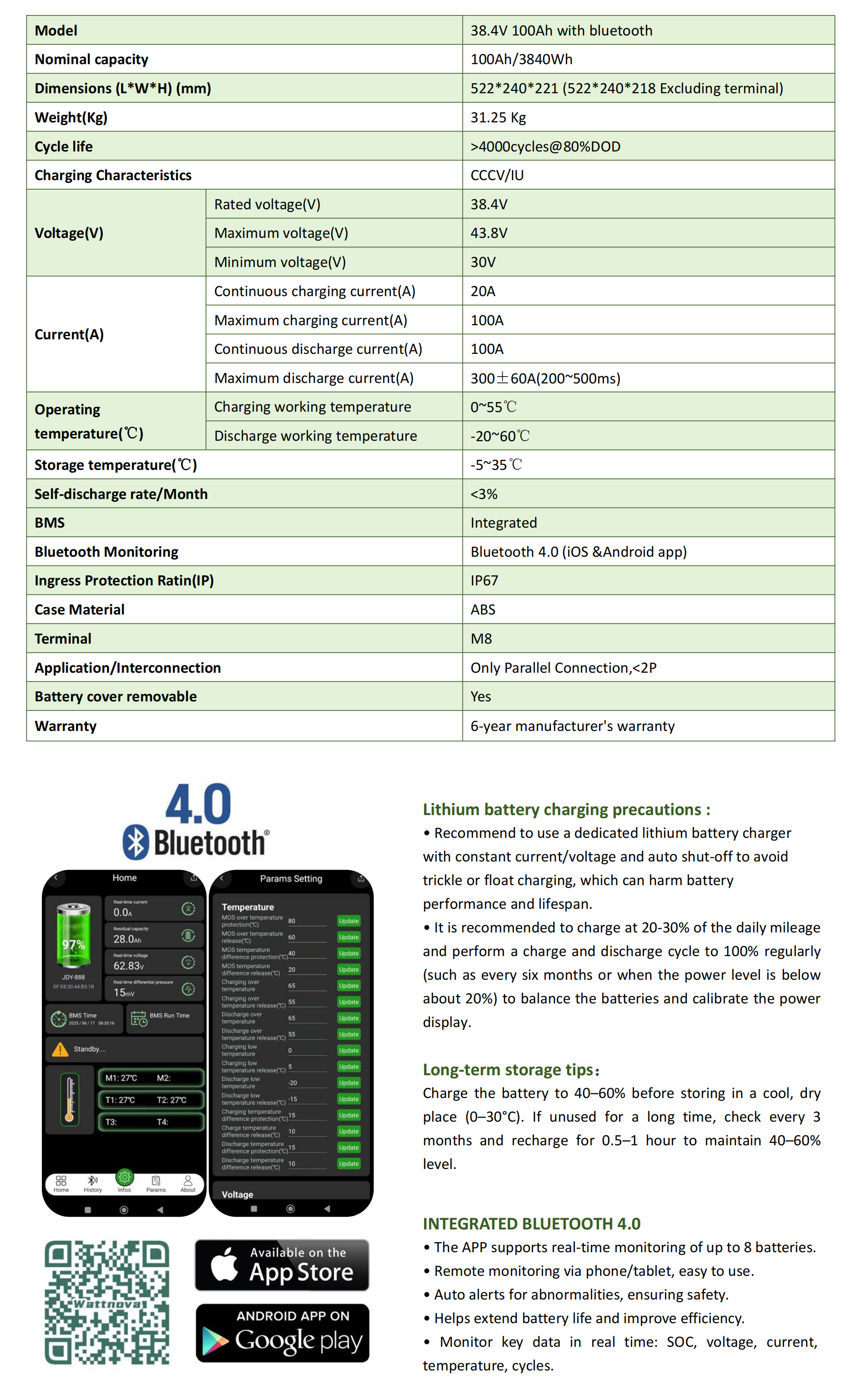

Key Specifications

Model 38.4V 100Ah with bluetooth
Nominal capacity 100Ah/3840Wh
Dimensions (L*W*H) (mm) 522*240*221 (522*240*218 Excluding terminal)
Weight(Kg) 31.25 Kg
Cycle life >4000cycles@80%DOD
Charging Characteristics CCCV/IU
Voltage(V) Rated voltage(V) 38.4V
Maximum voltage(V) 43.8V
Minimum voltage(V) 30V
Current(A) Continuous charging current(A) 20A
Maximum charging current(A) 100A
Continuous discharge current(A) 100A
Maximum discharge current(A) 300±60A(200~500ms)
Operating temperature(℃) Charging working temperature 0~55℃
Discharge working temperature -20~60℃
Storage temperature(℃) -5~35℃
Self-discharge rate/Month <3%
BMS Integrated
Bluetooth Monitoring Bluetooth 4.0 (iOS &Android app)
Ingress Protection Ratin(IP) IP67
Case Material ABS
Terminal M8
Application/Interconnection Only Parallel Connection,≤2P
Battery cover removable Yes
Warranty 6-year manufacturer's warranty

Product Features

  • Integrated smart BMS protection
  • Built-in Bluetooth monitoring
  • Lightweight and compact design
  • Maintenance-free operation
  • Long lifespan with over 6000 cycles (Built with LiFePO4 technology, the battery delivers over 6000 charge cycles, significantly outperforming traditional lead-acid batteries for long-term use.)
  • IP67 waterproof protection (IP67 rating ensures full dust protection and resistance to temporary water immersion up to 1 meter for 30 minutes, making it reliable for outdoor, marine, and RV environments.)
  • Perfect replacement for lead-acid batteries
  • 6-year manufacturer's warranty (Backed by a 6-year warranty, ensuring long-term reliability and peace of mind for users.)

Bluetooth Monitoring

Monitor battery status in real time through the mobile APP:

  • SOC (State of Charge)
  • Voltage
  • Current
  • Temperature
  • Battery cycles
  • Alarm notifications

Supports monitoring of up to 8 batteries simultaneously.

Applications

Suitable for:

  • RV & Camper
  • Marine
  • Solar Energy Storage
  • Off-grid Systems
  • Trolling Motors
  • Backup Power Systems
