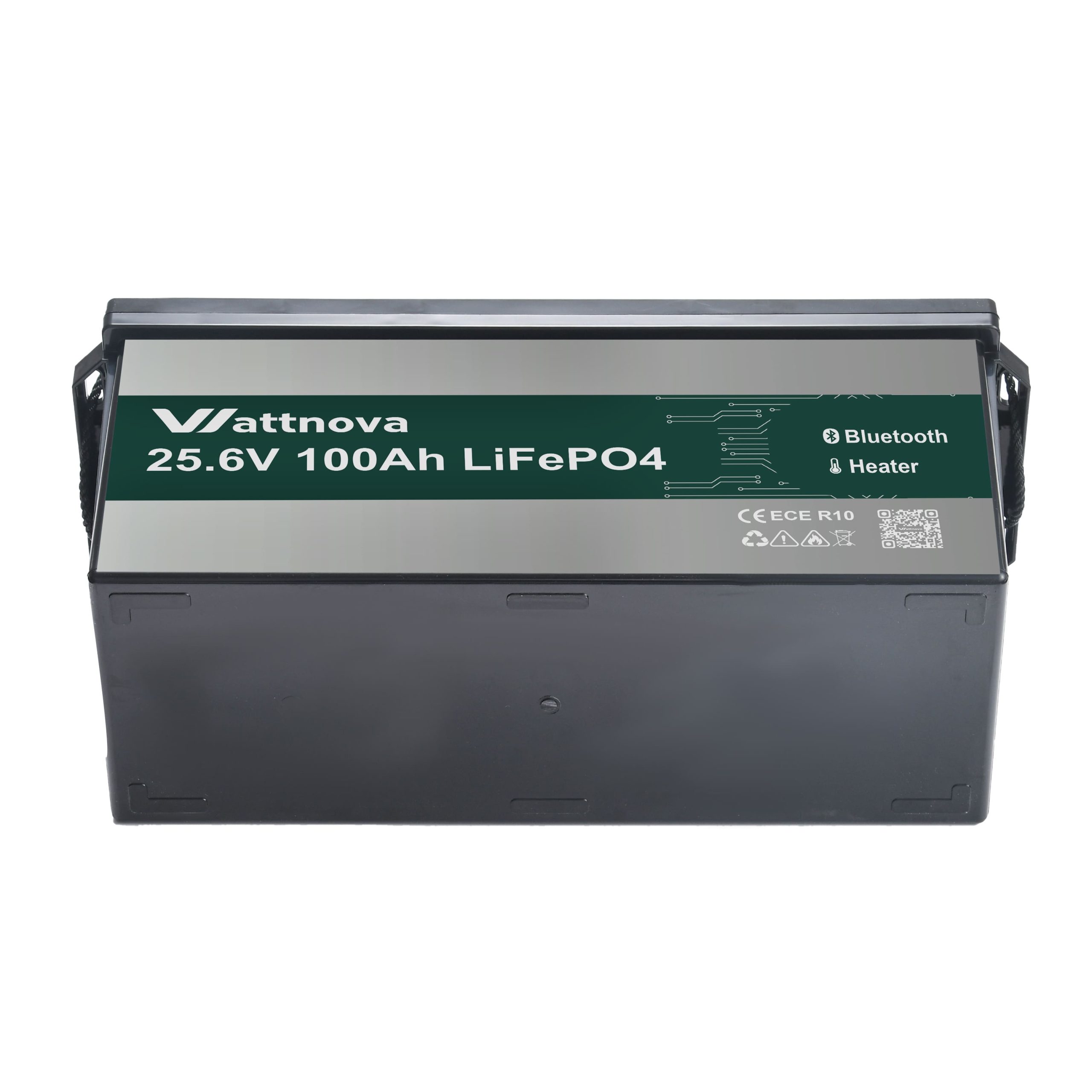

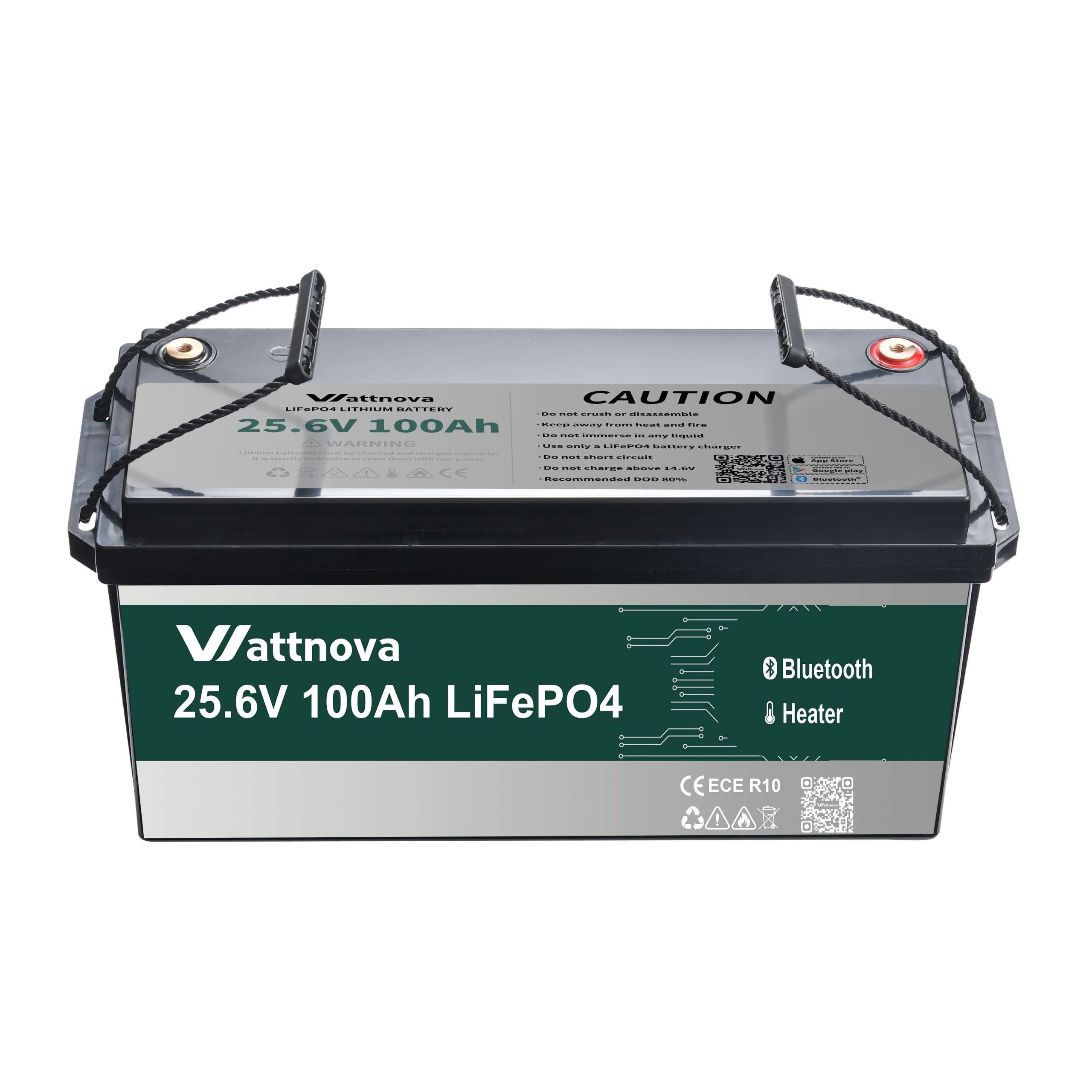

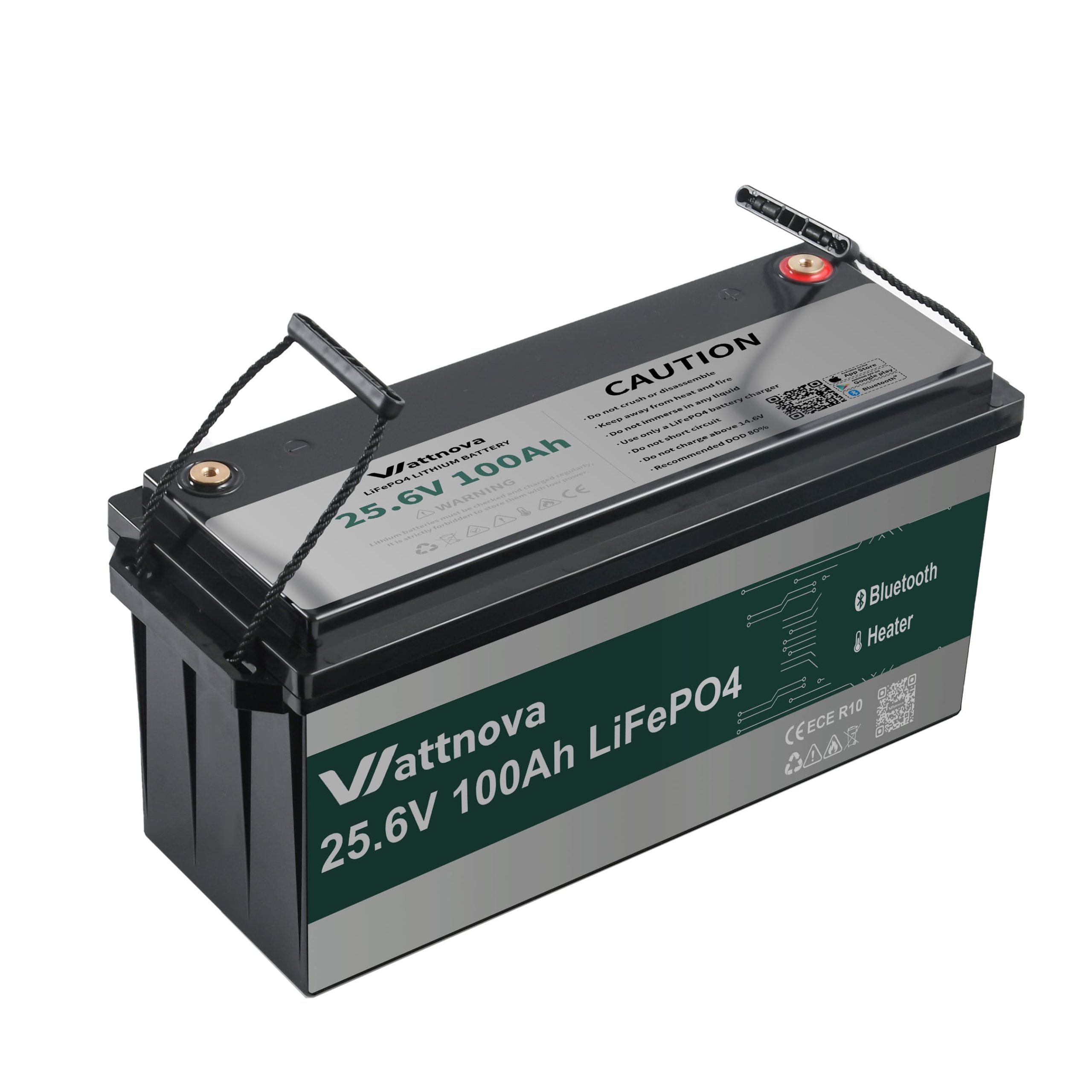

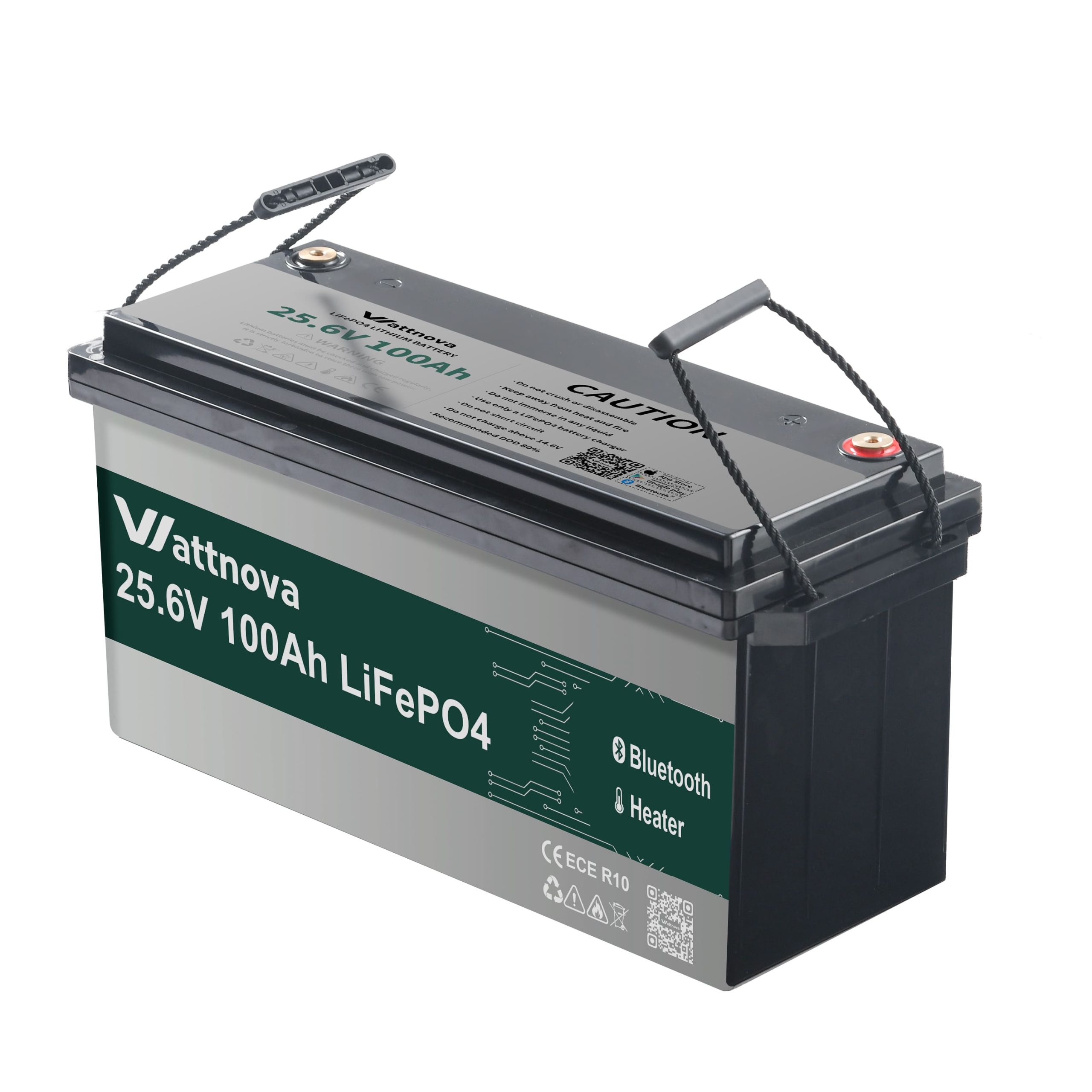

Wattnova 25.6V 100AH LiFePO4 Lithium Battery with Smart BMS and Bluetooth

Short Description:

· Model：W-24-100
· Dimensions: 502 × 186 × 246 mm, ABS case
· Grade A lithium iron phosphate prismatic cells
· High-efficiency 24V system reduces cable losses and improves energy efficiency
· Over 4,000 cycles, a service life exceeding ten years
· Bluetooth BMS and real-time monitoring, easily controllable via app
· Local German warehousing and EU certifications (CE, RoHS, UN38.3, etc.)
· 6-year manufacturer's warranty.

Send email to us

Product Detail

WATTNOVA 25.6V 100Ah Lithium Battery

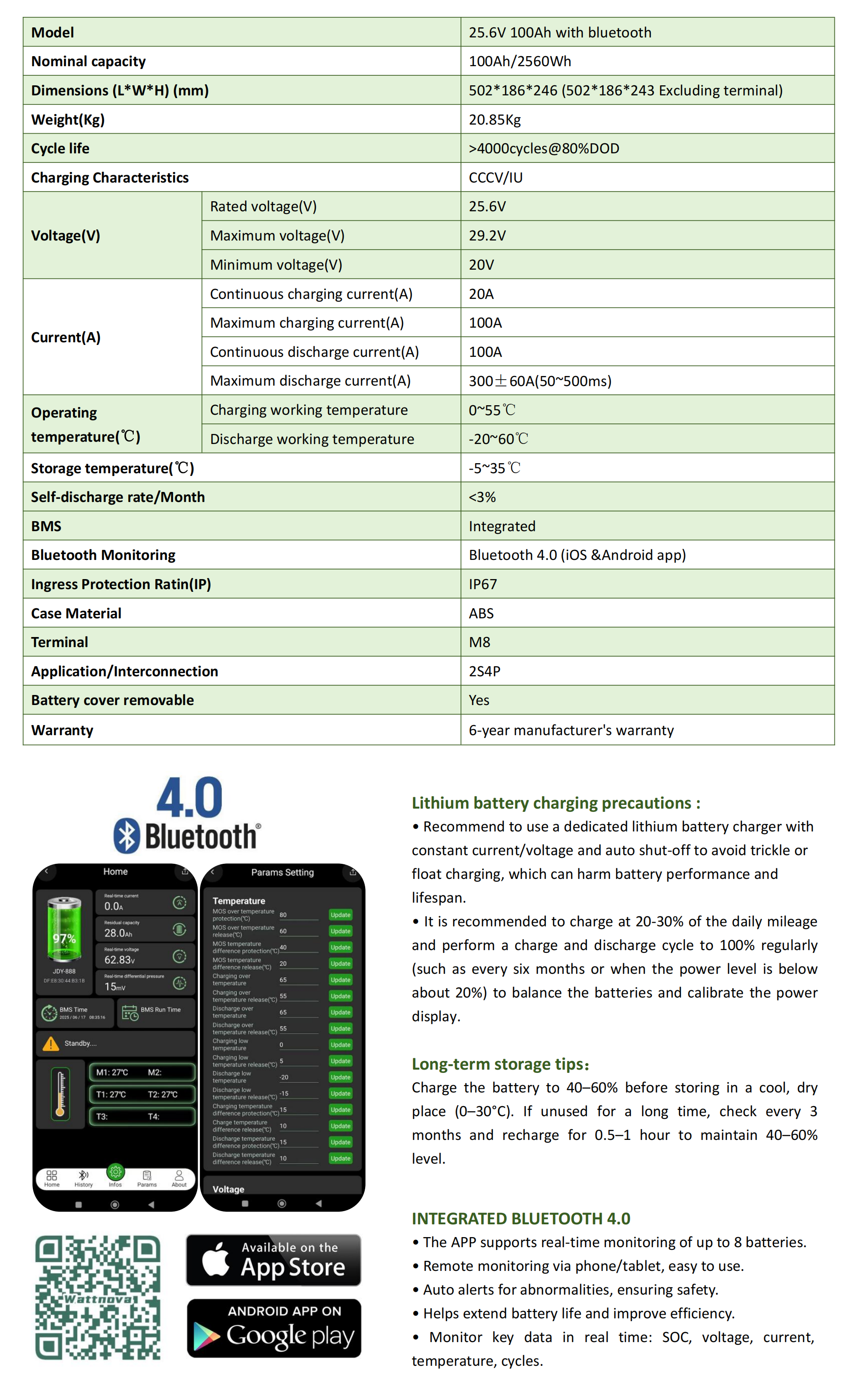

Key Specifications

Model		25.6V 100Ah with bluetooth
Nominal capacity		100Ah/2560Wh
*Dimensions (LWH) (mm)*		502186246 (502186243 Excluding terminal)
Weight(Kg)		20.85Kg
Cycle life		>4000cycles@80%DOD
Charging Characteristics		CCCV/IU
Voltage(V)	Rated voltage(V)	25.6V
	Maximum voltage(V)	29.2V
	Minimum voltage(V)	20V
Current(A)	Continuous charging current(A)	20A
	Maximum charging current(A)	50A
	Continuous discharge current(A)	100A
	Maximum discharge current(A)	300±60A(50~500ms)
Operating temperature(℃)	Charging working temperature	0~55℃
	Discharge working temperature	-20~60℃
Storage temperature(℃)		-5~35℃
Self-discharge rate/Month		<3%
BMS		Integrated
Bluetooth Monitoring		Bluetooth 4.0 (iOS &Android app)
Ingress Protection Ratin(IP)		IP67
Case Material		ABS
Terminal		M8
Application/Interconnection		2S4P
Battery cover removable		Yes
Warranty		6-year manufacturer's warranty

Product Features

Integrated smart BMS protection
Built-in Bluetooth monitoring
Lightweight and compact design
Maintenance-free operation
Long lifespan with over 6000 cycles (Built with LiFePO4 technology, the battery delivers over 6000 charge cycles, significantly outperforming traditional lead-acid batteries for long-term use.)
IP67 waterproof protection (IP67 rating ensures full dust protection and resistance to temporary water immersion up to 1 meter for 30 minutes, making it reliable for outdoor, marine, and RV environments.)
Perfect replacement for lead-acid batteries
6-year manufacturer's warranty (Backed by a 6-year warranty, ensuring long-term reliability and peace of mind for users.)

Bluetooth Monitoring

Monitor battery status in real time through the mobile APP:

SOC (State of Charge)
Voltage
Current
Temperature
Battery cycles
Alarm notifications

Supports monitoring of up to 8 batteries simultaneously.

Applications

Suitable for:

RV & Camper
Marine
Solar Energy Storage
Off-grid Systems
Trolling Motors
Backup Power Systems
