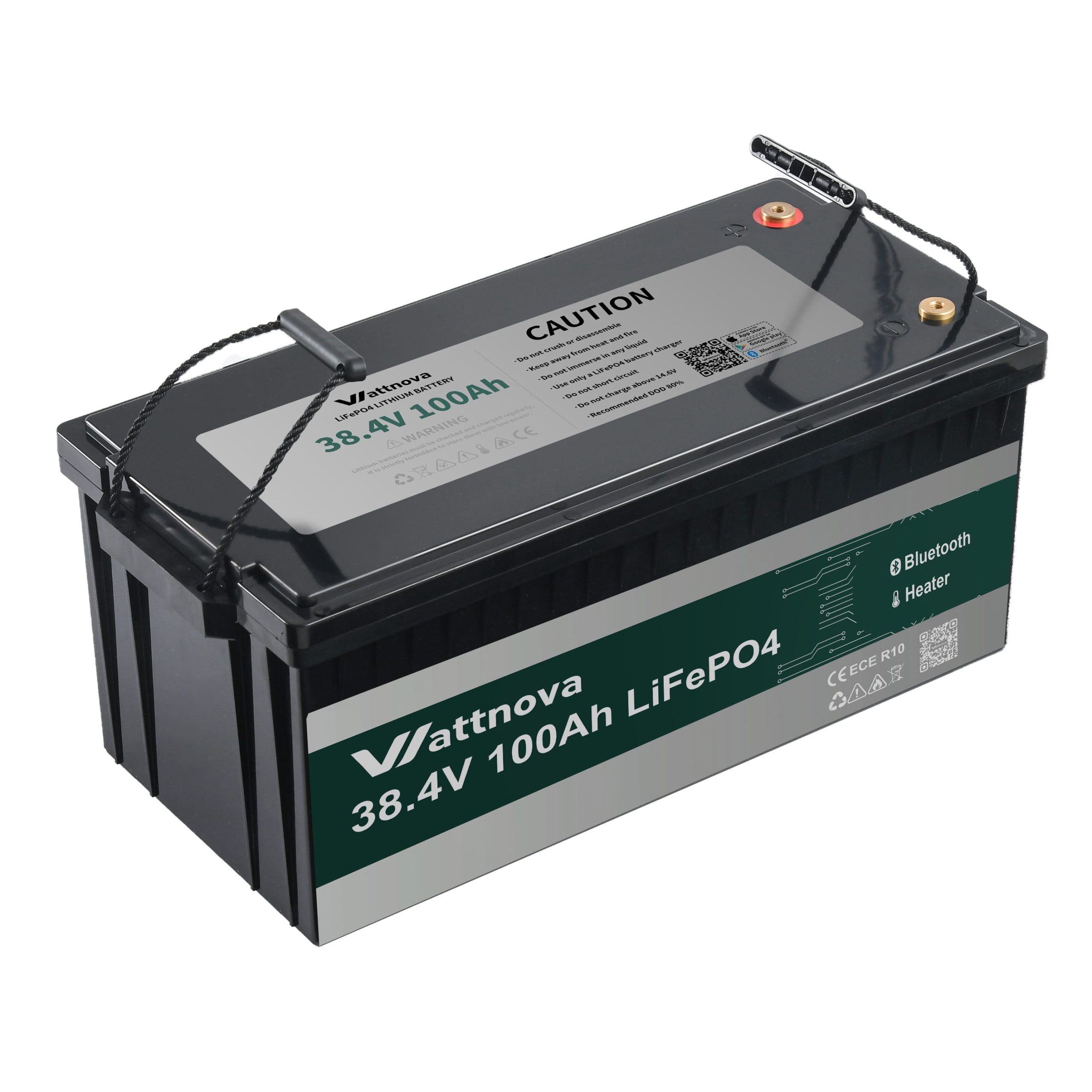

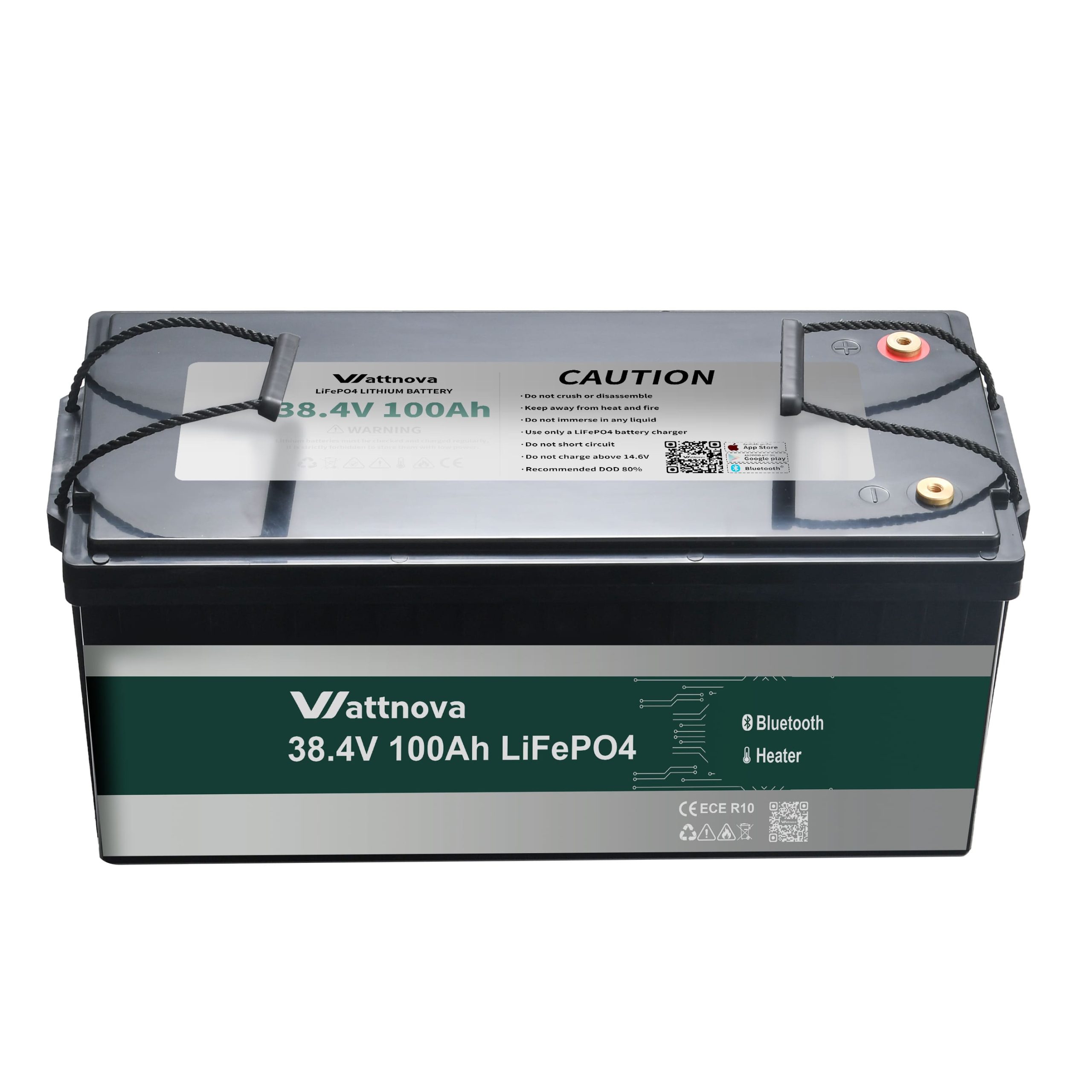

38.4V 100AH LiFePO4 Lithium Battery with Smart BMS and Bluetooth

Short Description:

· Dimensions: 522 × 240 × 221 mm, ABS case
· Grade A lithium iron phosphate prismatic cells
· High-voltage 36V system, suitable for high-power devices and long-distance power supply
· Over 4,000 cycles, for a service life exceeding ten years
· Bluetooth BMS and real-time monitoring, easily controllable via app
· Local German warehousing and EU certifications (CE, RoHS, UN38.3, etc.)
· 6-year manufacturer's warranty.

Send email to us

Product Detail

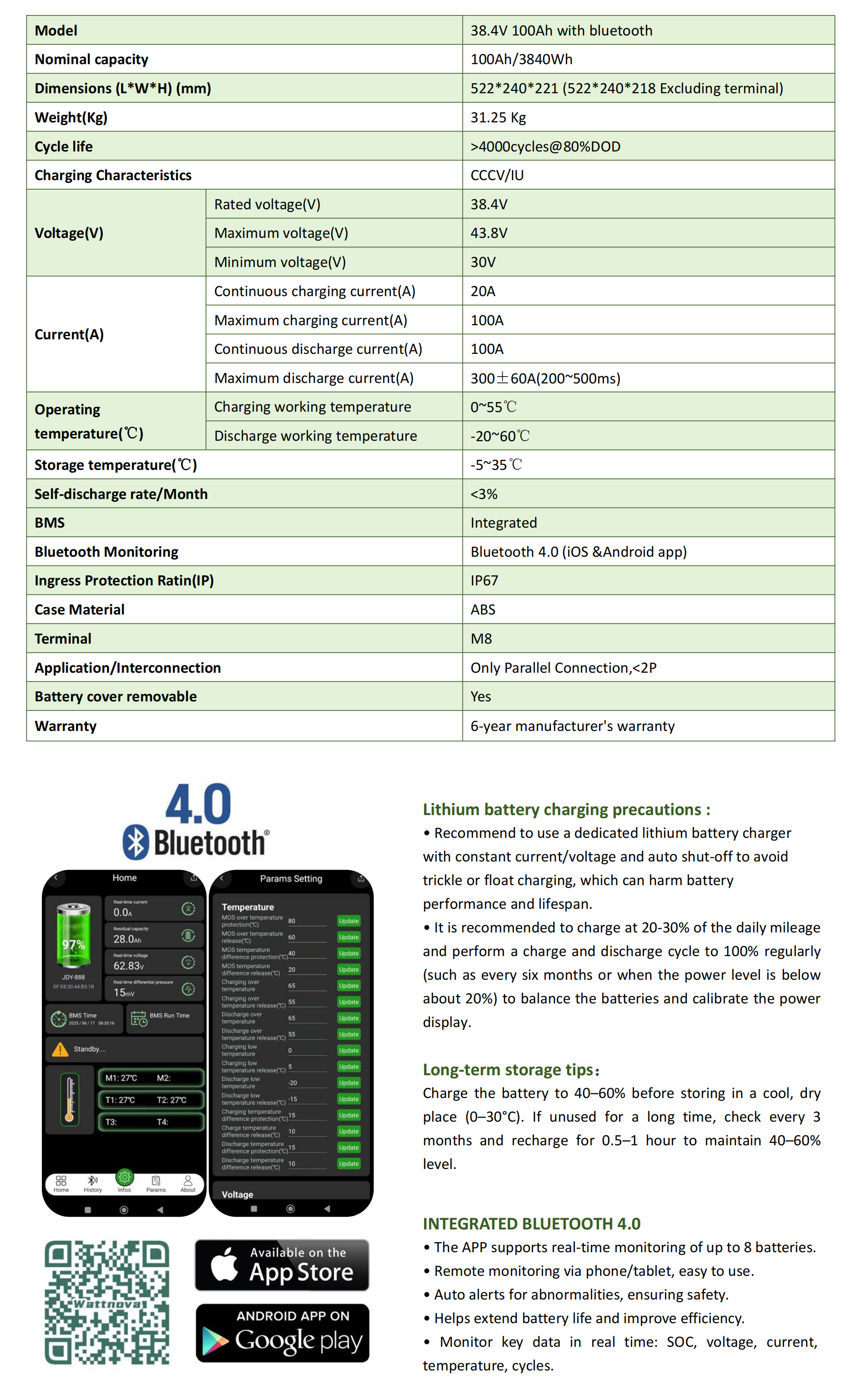

Product Parameters

Model		38.4V 100Ah with bluetooth
Nominal capacity		100Ah/3840Wh
Dimensions (LWH) (mm)		522240221 (522240218 Excluding terminal)
Weight(Kg)		31.25 Kg
Cycle life		>4000cycles@80%DOD
Charging Characteristics		CCCV/IU
Voltage(V)	Rated voltage(V)	38.4V
	Maximum voltage(V)	43.8V
	Minimum voltage(V)	30V
Current(A)	Continuous charging current(A)	20A
	Maximum charging current(A)	50A
	Continuous discharge current(A)	150A
	Maximum discharge current(A)	300±60A(200~500ms)
Operating temperature(℃)	Charging working temperature	0~55℃
Operating temperature(℃)	Discharge working temperature	-20~60℃
Storage temperature(℃)		-5~35℃
Self-discharge rate/Month		<3%
Heating function		Start heating when charging below 0℃
		Stop heating when heated to 10℃
		Do not heat during discharge
BMS		Integrated
Bluetooth Monitoring		Bluetooth 4.0 (iOS &Android app)
Ingress Protection Ratin(IP)		IP65
Case Material		ABS
Terminal（dual-purpose ）		M8
Application/ Interconnection		Only Parallel Connection,<2P
Battery cover removable		Yes
Warranty		6-year manufacturer's warranty

36V 100Ah Lithium Battery – A High-Voltage Solution for Powerful Systems

This 36V 100Ah lithium iron phosphate (LiFePO₄) battery boasts 3.84 kWh of energy storage capacity and is designed for high-performance applications such as electric propulsion systems, large marine installations, industrial equipment, and solar backup systems. Its higher voltage enables efficient energy delivery, lower current consumption, and reduced heat generation, extending system life.

Long-Lasting Durability

With exceptional runtime and stable performance, this battery is ideal for long-distance sailing, off-grid power storage, and commercial or professional equipment requiring extreme reliability.

Durable ABS Housing

The high-strength ABS housing is lightweight, impact-resistant, and corrosion-resistant, making it ideal for indoor and outdoor installations. Its flame-retardant properties and robust sealing design enhance safety and reliability, while its compact size allows for flexible installation in confined spaces.

Intelligent Battery Management System (BMS) and Bluetooth Monitoring

The automotive-grade BMS protects against overvoltage, undervoltage, overcurrent, and short circuits. Optional Bluetooth connectivity allows you to view real-time battery status, charge status, temperature, and cycle life via your phone.

An ideal lead-acid battery replacement

Compared to AGM or GEL batteries, this lithium iron phosphate battery is 50% lighter, charges four times faster, and can be cycled over 3,000 times at 80% depth of discharge. It's maintenance-free, has no memory effect, and can be installed in any orientation, making it a true lead-acid replacement.

We provide you with fast delivery, personalized support and comprehensive technical consulting services, making us your ideal partner.
