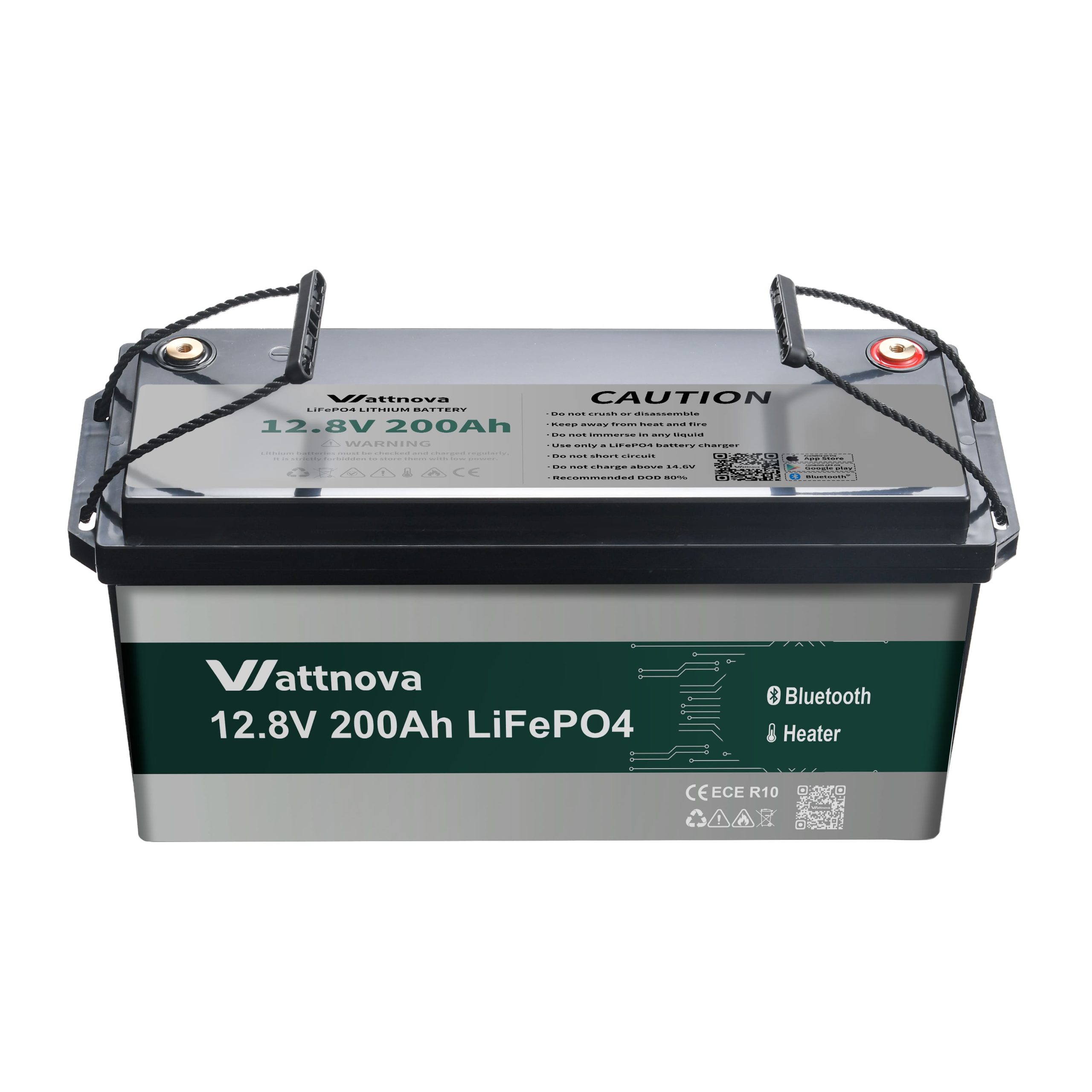

12.8V 200AH LiFePO4 Lithium Battery with Smart BMS and Bluetooth

Short Description:

· Dimensions: 502 * 186 * 246 mm, ABS housing
· Grade A lithium iron phosphate prismatic cells
· 200A continuous discharge current
· Over 4,000 cycles, a service life exceeding ten years
· Bluetooth BMS and real-time monitoring, easily controllable via app
· Local German warehousing and EU certifications (CE, RoHS, UN38.3, etc.)
· 6-year manufacturer's warranty.

Send email to us

Product Detail

Product Parameters

Model		12.8V 200Ah with bluetooth
Nominal capacity		200Ah/2560Wh
Dimensions (LWH) (mm)		502186246 (502186243 Excluding terminal)
Weight(Kg)		20.9Kg
Cycle life		>4000cycles@80%DOD
Charging Characteristics		CCCV/IU
Voltage(V)	Rated voltage(V)	12.8V
	Maximum voltage(V)	14.6V
	Minimum voltage(V)	10V
Current(A)	Continuous charging current(A)	40A
	Maximum charging current(A)	100A
	Continuous discharge current(A)	200A
	Maximum discharge current(A)	660±100A(200~500ms)
Operating temperature(℃)	Charging working temperature	0~55℃
Operating temperature(℃)	Discharge working temperature	-20~60℃
Storage temperature(℃)		-5~35℃
Self-discharge rate/Month		<3%
Heating function		Start heating when charging below 0℃
		Stop heating when heated to 10℃
		Do not heat during discharge
BMS		Integrated
Bluetooth Monitoring		Bluetooth 4.0 (iOS &Android app)
Ingress Protection Ratin(IP)		IP65
Case Material		ABS
Terminal（dual-purpose ）		M8
Application/ Interconnection		4S4P
Battery cover removable		Yes
Warranty		6-year manufacturer's warranty

12.8V 200Ah Lithium Battery – High Capacity for Long-Term Off-Grid Power

This 12.8V 200Ah lithium iron phosphate (LiFePO₄) battery is designed for users seeking long-lasting energy storage and stable performance. With a usable capacity of up to 200Ah (over 2.56 kWh) and dimensions of 502 × 186 × 246 mm, it's ideal for RVs, marine applications, solar backup systems, mobile food trucks, and off-grid cabins.

Long-Lasting Off-Grid Power

The high capacity provides stable, long-lasting power for demanding applications. This ensures extended runtime, making it ideal for long-distance travel, remote installations, and continuous operation without frequent recharging. It's ideal for large off-grid systems, marine operations, and commercial or industrial installations where reliability and durability are critical.

Durable ABS Housing

The high-strength ABS housing is lightweight, impact-resistant, and corrosion-resistant, making it ideal for indoor and outdoor installations. Its flame-retardant properties and rugged sealed design enhance safety and reliability, while its compact size allows for flexible installation in tight spaces.

Smart BMS with Bluetooth Monitoring

Equipped with automotive-grade BMS technology, this battery allows real-time battery monitoring via a Bluetooth app. You can view voltage, current, state of charge, temperature, and cycle count directly from your smartphone, making it ideal for outdoor enthusiasts, sailors, or technicians who need instant diagnostics.

An Ideal Lead-Acid Battery Replacement

Compared to AGM or GEL batteries, this lithium iron phosphate battery is 50% lighter, charges four times faster, and can be cycled over 3,000 times at 80% depth of discharge. It's maintenance-free, has no memory effect, and can be installed in any orientation, making it a true lead-acid replacement.
