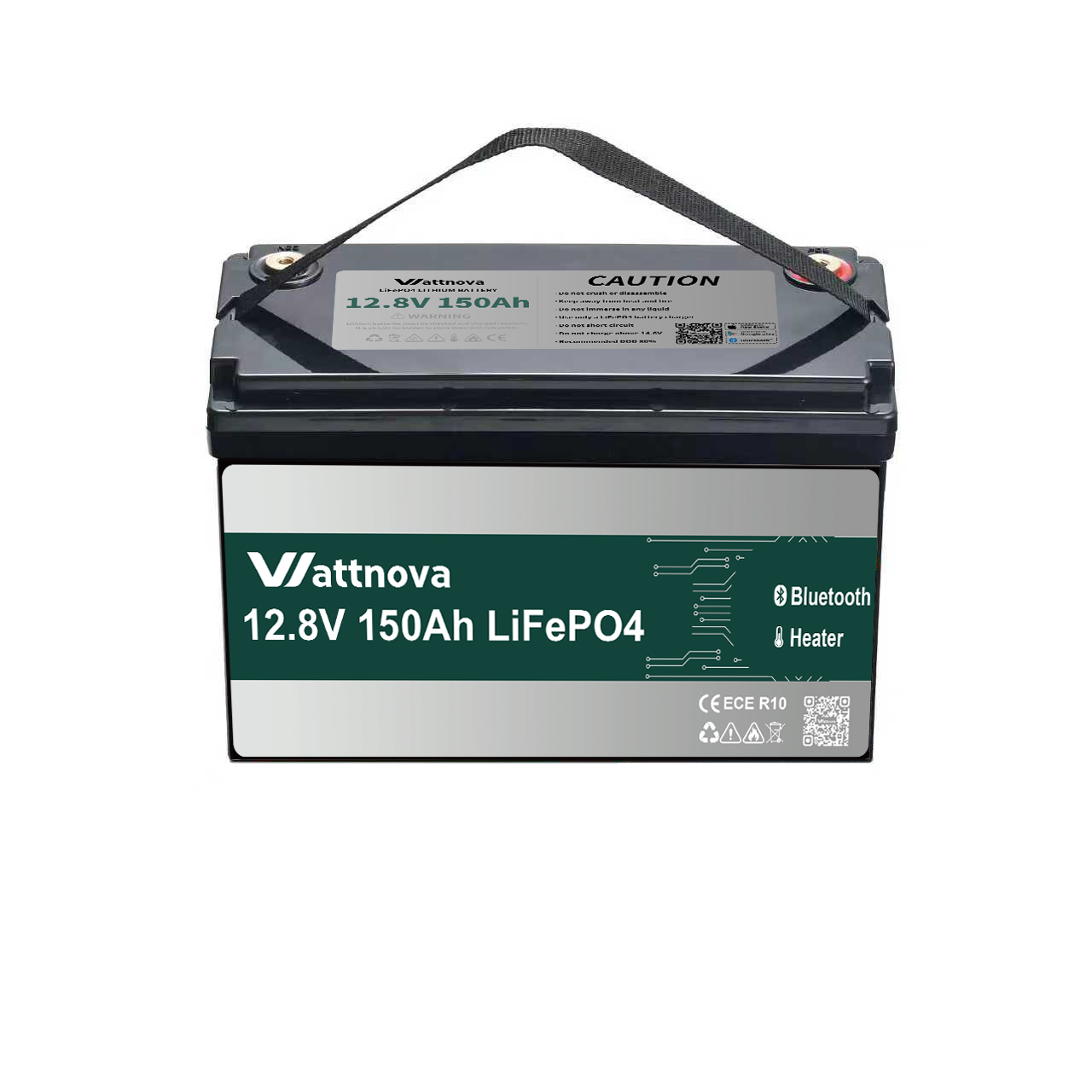

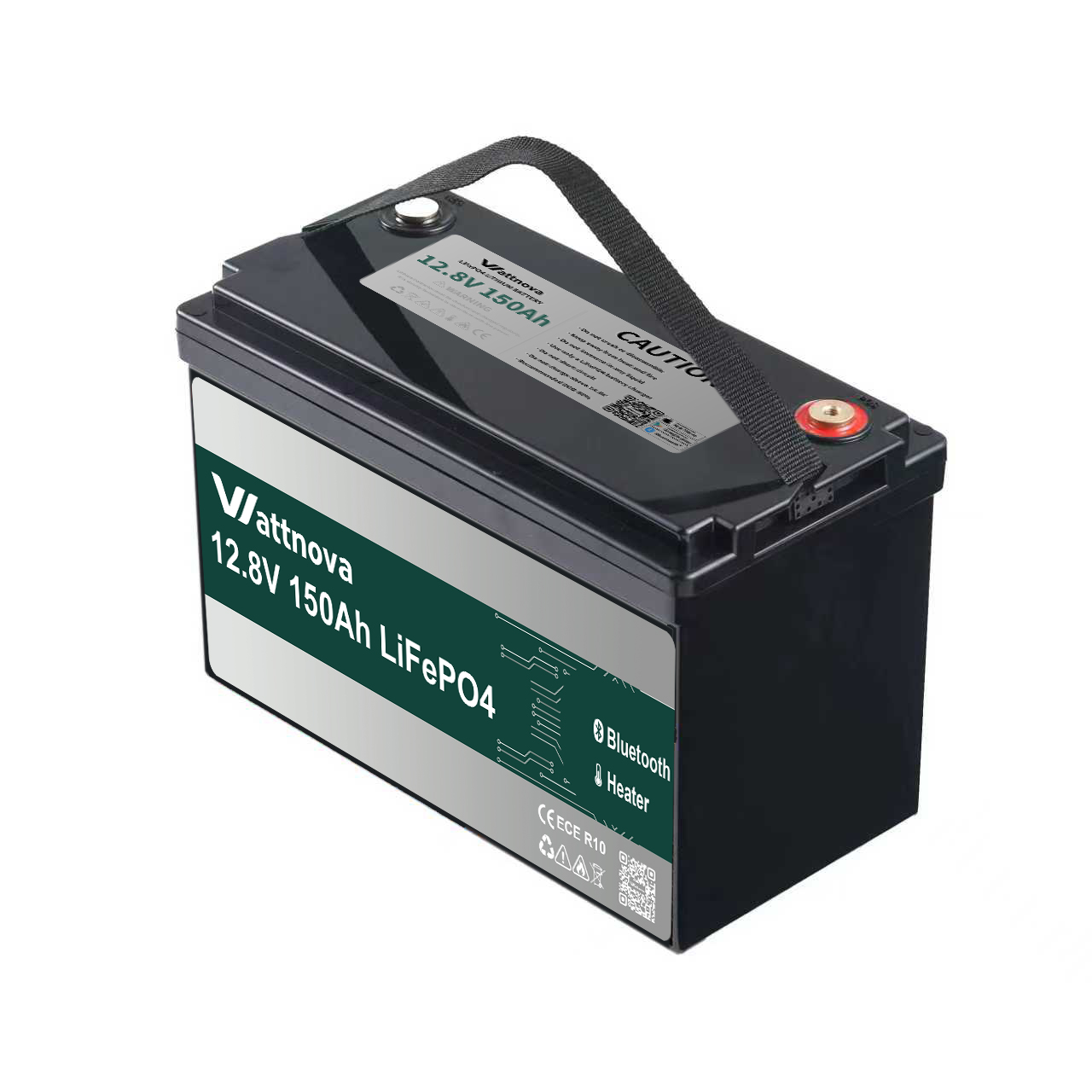

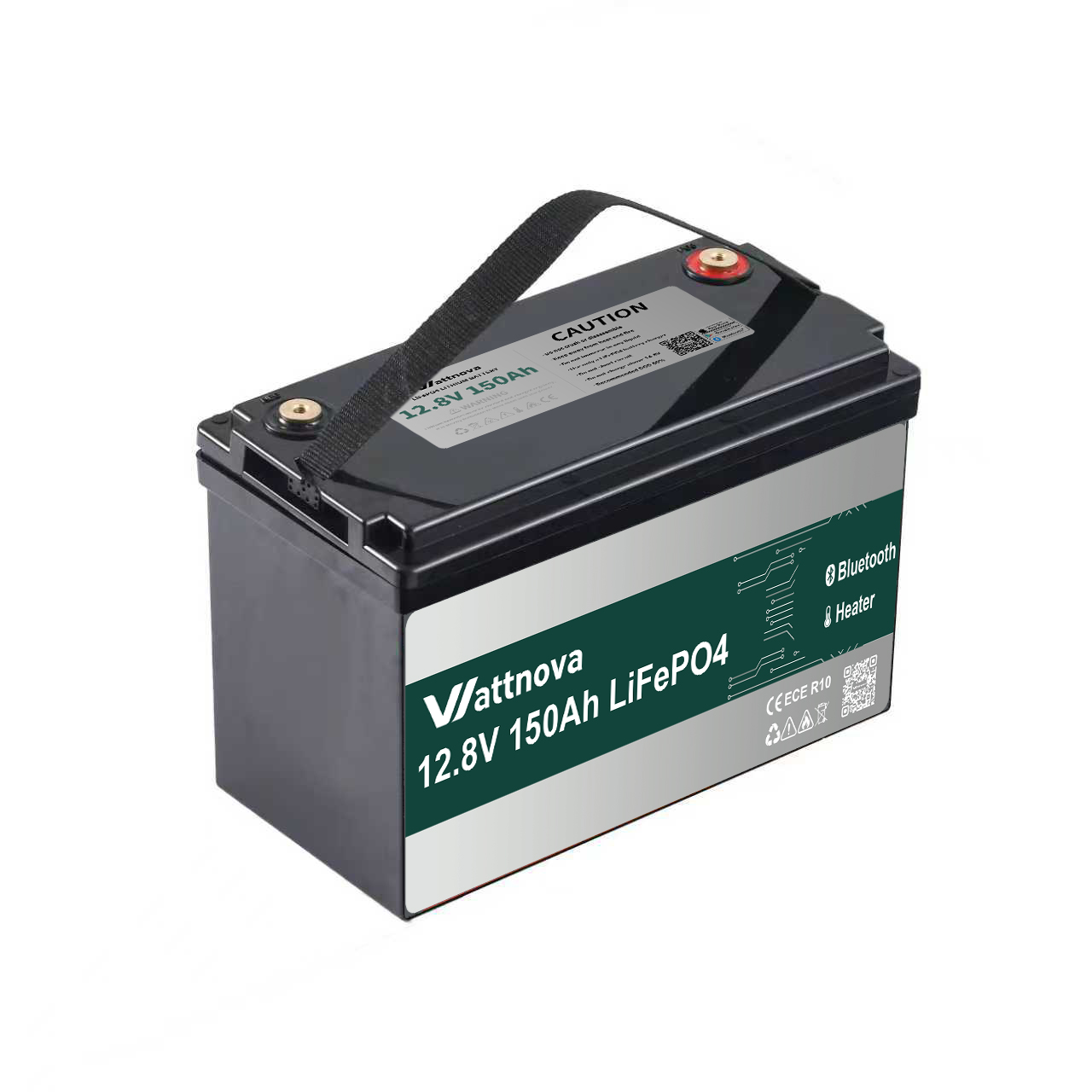

Wattnova 12.8V 150AH LiFePO4 Lithium Battery with Smart BMS and Bluetooth

· Model: W-12-150H

· Dimensions: 330 * 172 * 215 mm, ABS case

· Grade A lithium iron phosphate prismatic cells

· Up to 150 A continuous discharge current

· Over 6,000 cycles, for a service life exceeding ten years

· Bluetooth BMS and real-time monitoring, easily controllable via app

· Local German warehousing and EU certifications (CE, RoHS, UN38.3, etc.)

· 6-year manufacturer's warranty

Send email to us

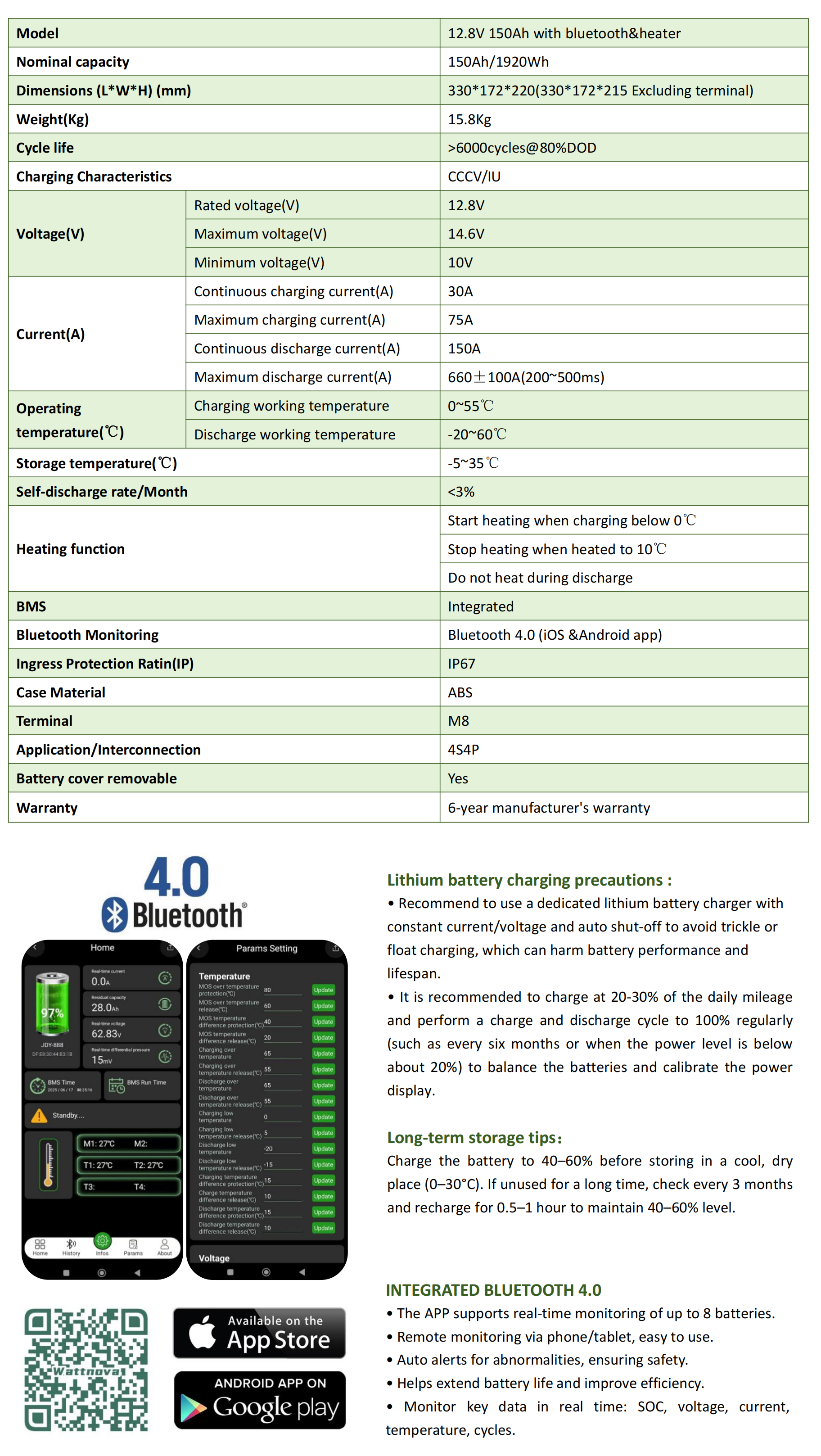

Product Detail

Model		12.8V 150Ah with bluetooth&heater
Nominal capacity		150Ah/1920Wh
*Dimensions (LWH) (mm)*		330172220(330172215 Excluding terminal)
Weight(Kg)		15.8Kg
Cycle life		>6000cycles@80%DOD
Charging Characteristics		CCCV/IU
Voltage(V)	Rated voltage(V)	12.8V
	Maximum voltage(V)	14.6V
	Minimum voltage(V)	10V
Current(A)	Continuous charging current(A)	30A
	Maximum charging current(A)	75A
	Continuous discharge current(A)	150A
	Maximum discharge current(A)	660±100A(200~500ms)
Operating temperature(℃)	Charging working temperature	0~55℃
	Discharge working temperature	-20~60℃
Storage temperature(℃)		-5~35℃
Self-discharge rate/Month		<3%
Heating function		Start heating when charging below 15℃
		Stop heating when heated to 15℃
		Do not heat during discharge
BMS		Integrated
Bluetooth Monitoring		Bluetooth 4.0 (iOS &Android app)
Ingress Protection Ratin(IP)		IP67
Case Material		ABS
Terminal		M8
Application/Interconnection		4S4P
Battery cover removable		Yes
Warranty		6-year manufacturer's warranty

Integrated smart BMS protection
Built-in Bluetooth monitoring
Self-heating function for cold weather charging (The self-heating system automatically activates when the battery temperature is below 0°C (32°F), ensuring safe charging in cold conditions.It stops automatically once the battery reaches a suitable charging temperature.)
Lightweight and compact design
Maintenance-free operation
Long lifespan with over 6000 cycles (Built with LiFePO4 technology, the battery delivers over 6000 charge cycles, significantly outperforming traditional lead-acid batteries for long-term use.)
IP67 waterproof protection
6-year manufacturer's warranty (Backed by a 6-year warranty, ensuring long-term reliability and peace of mind for users.)
Perfect replacement for lead-acid batteries

Monitor battery status in real time through the mobile APP:

Supports monitoring of up to 8 batteries simultaneously.

Suitable for:
