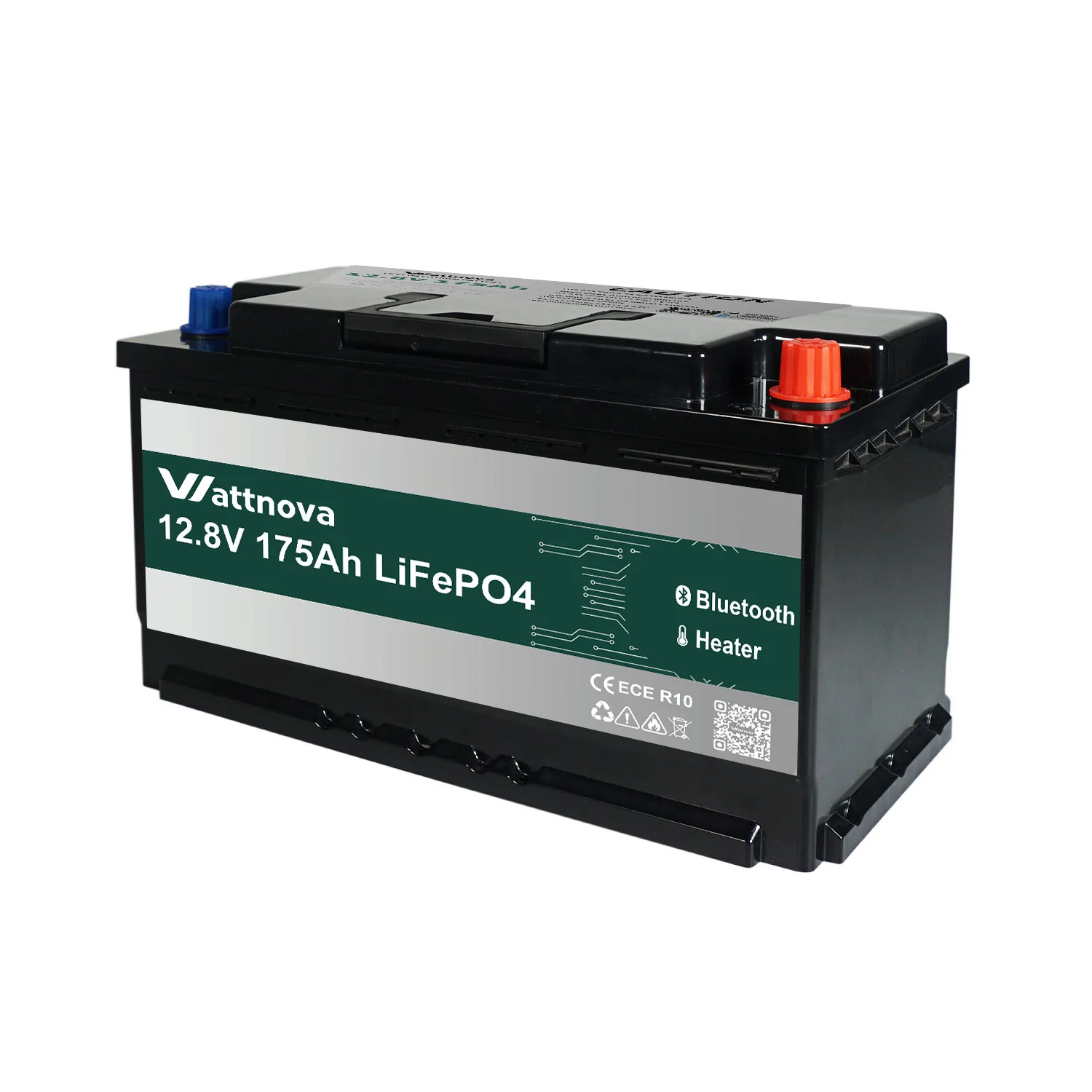

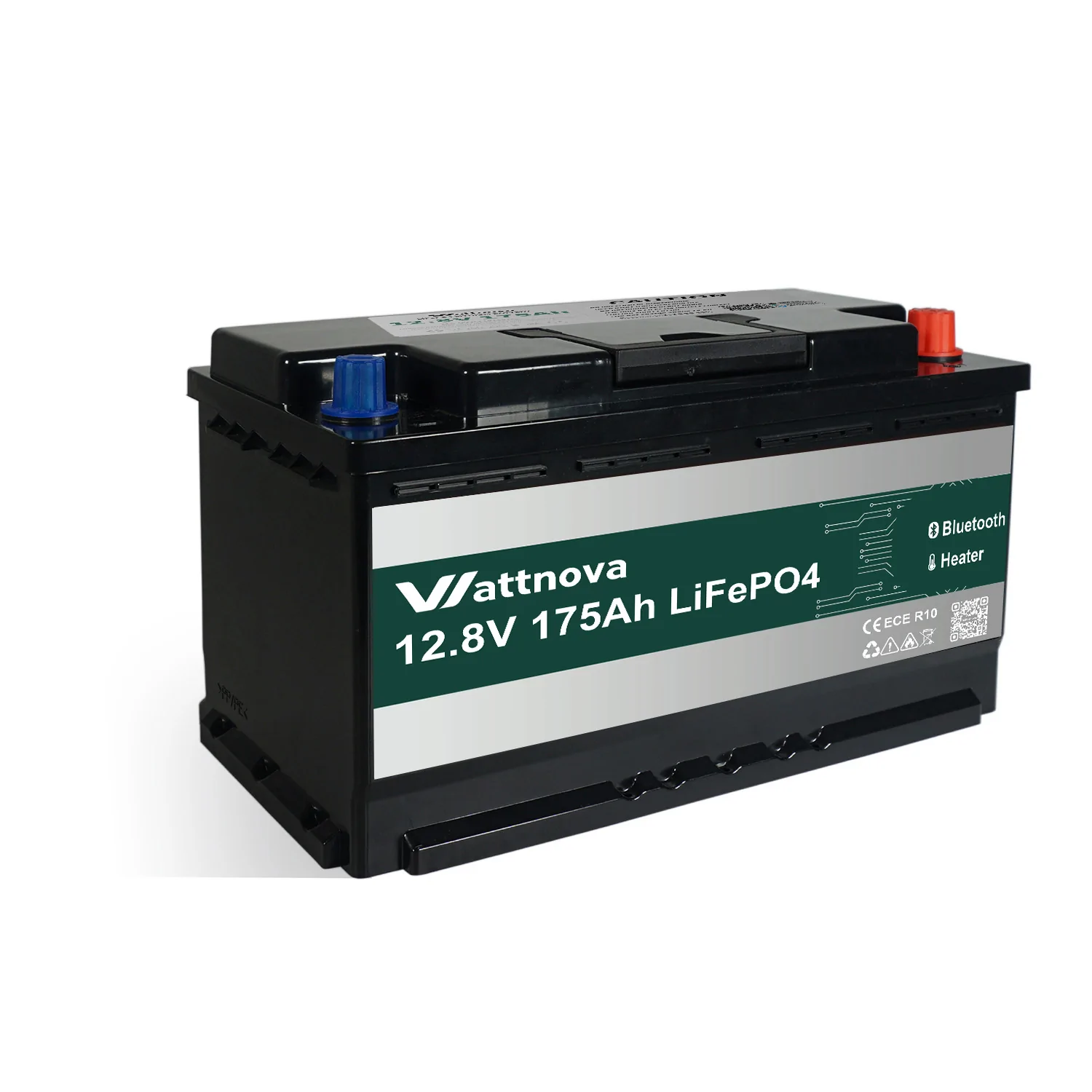

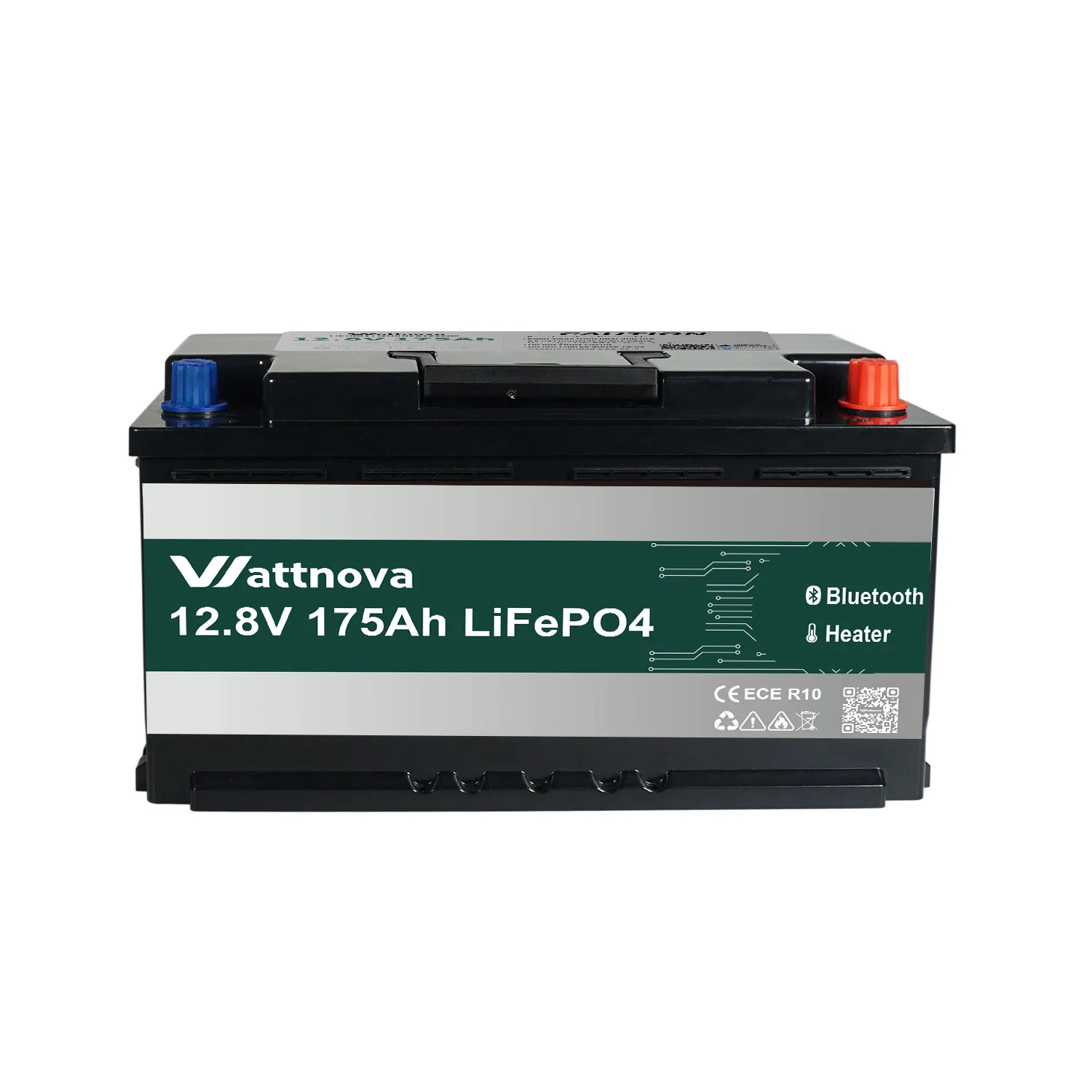

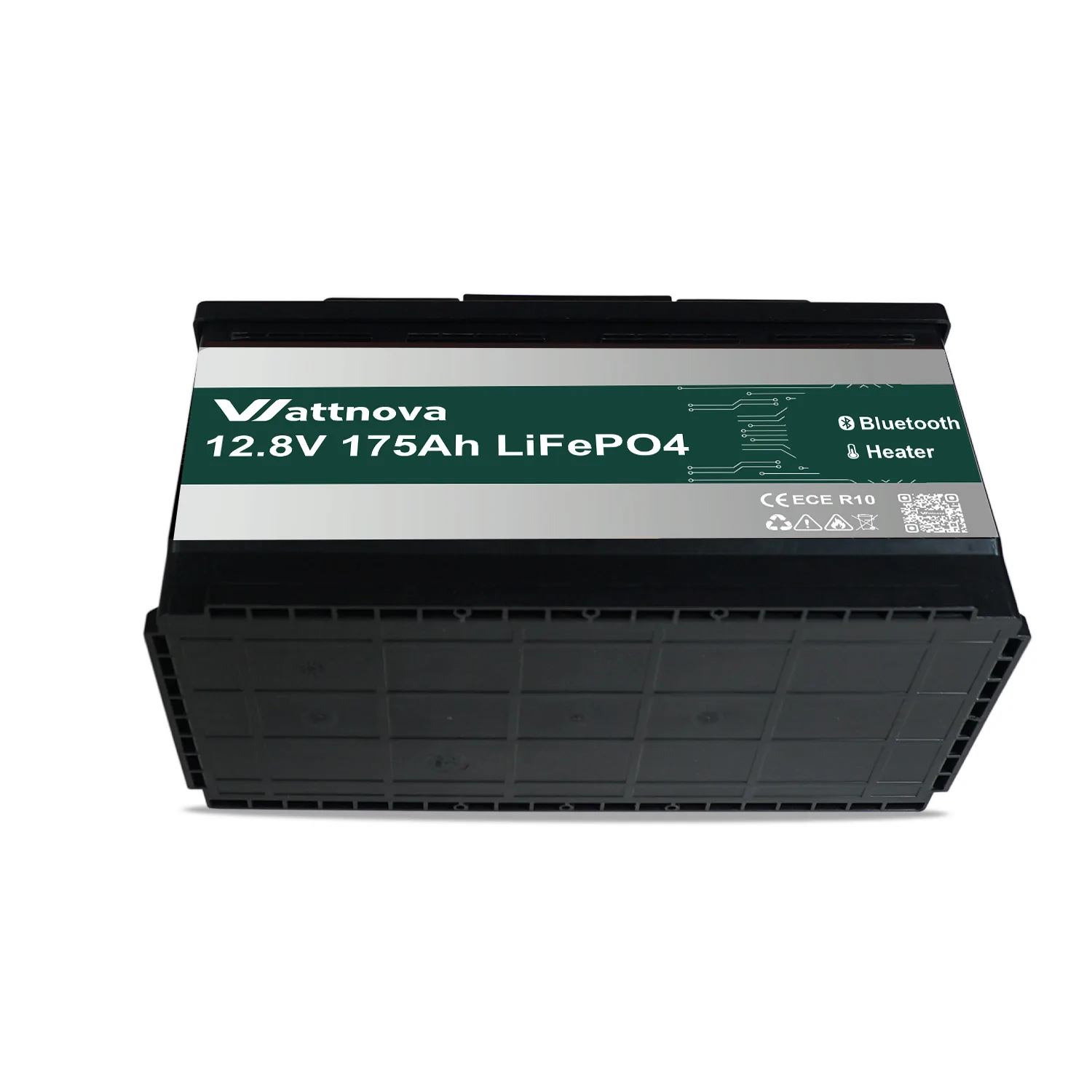

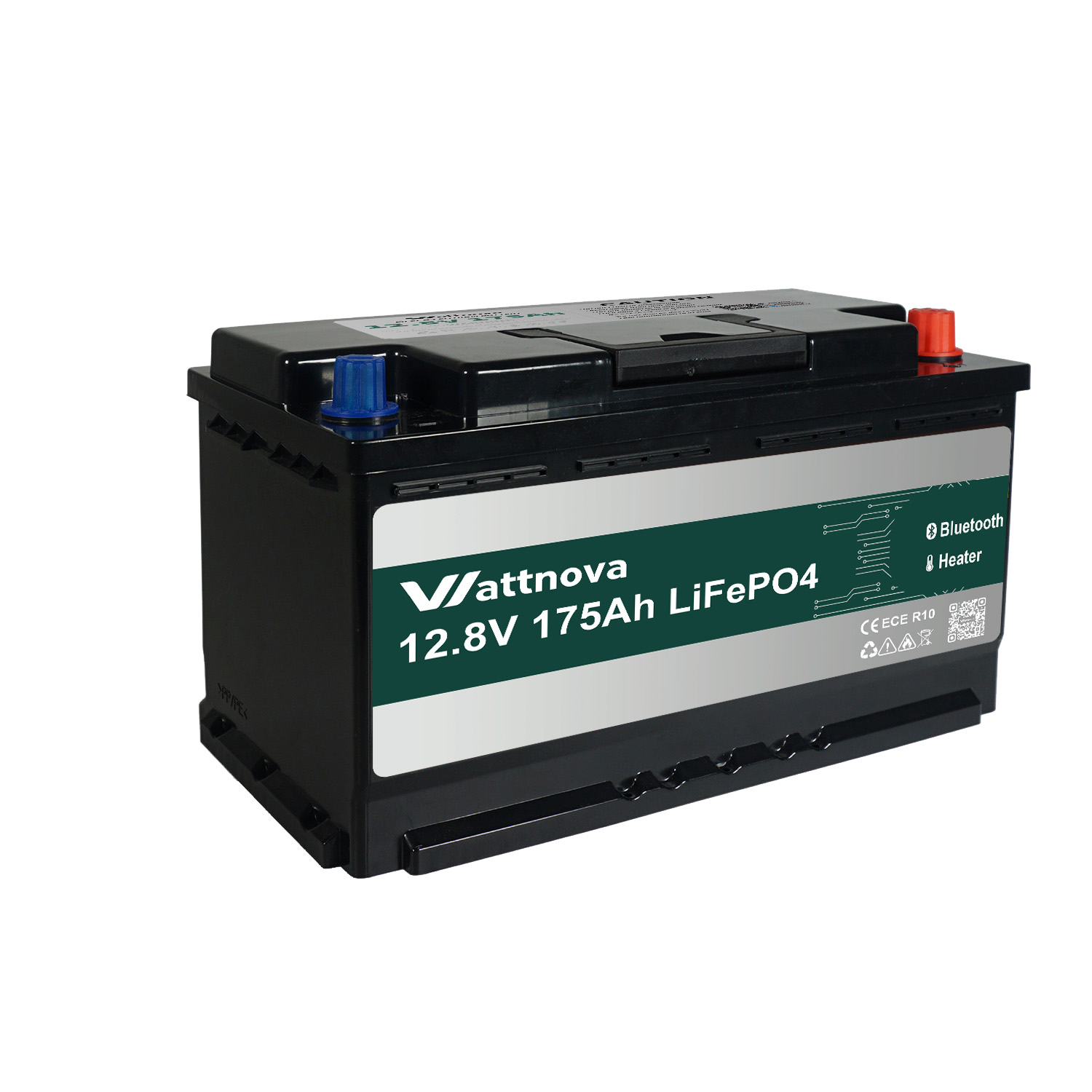

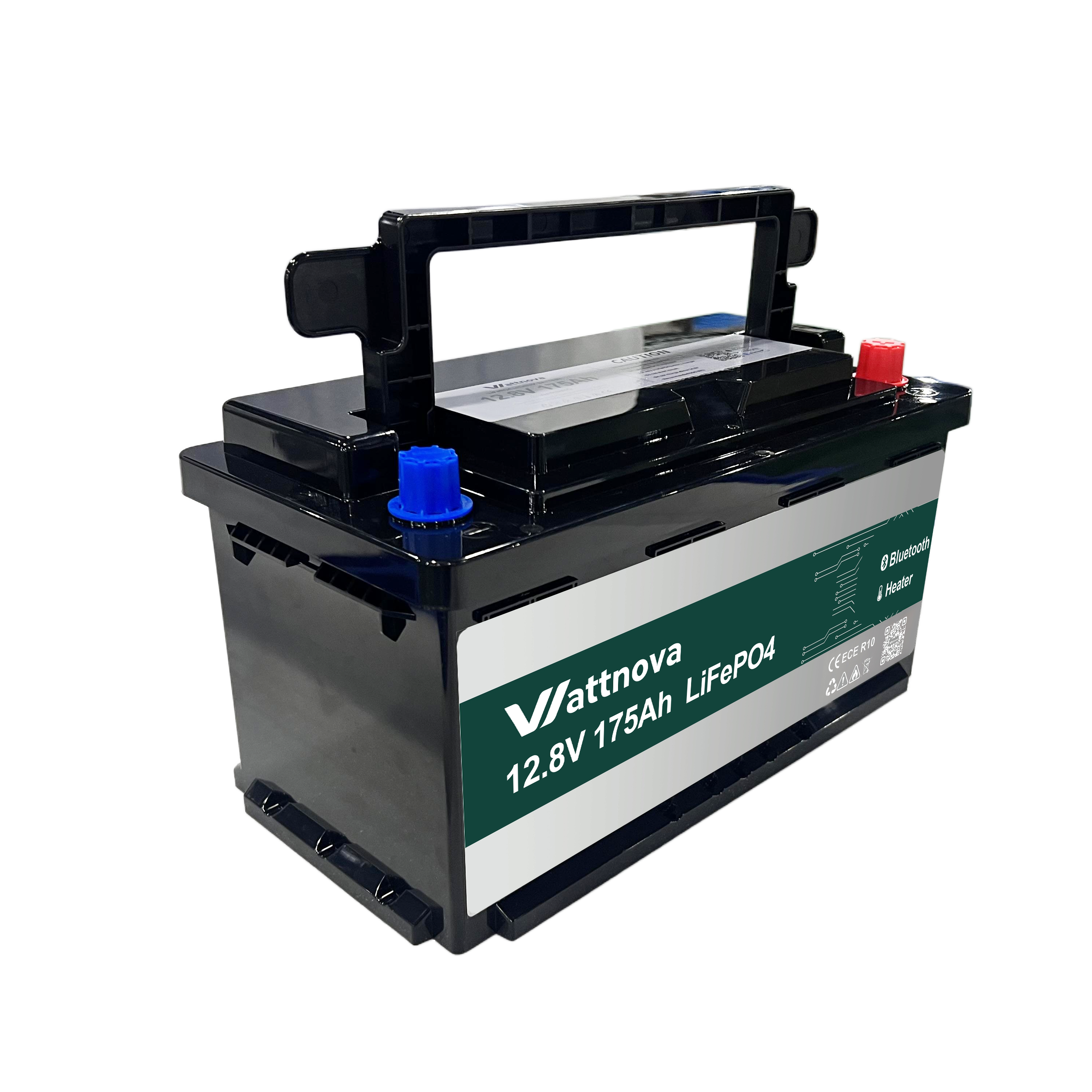

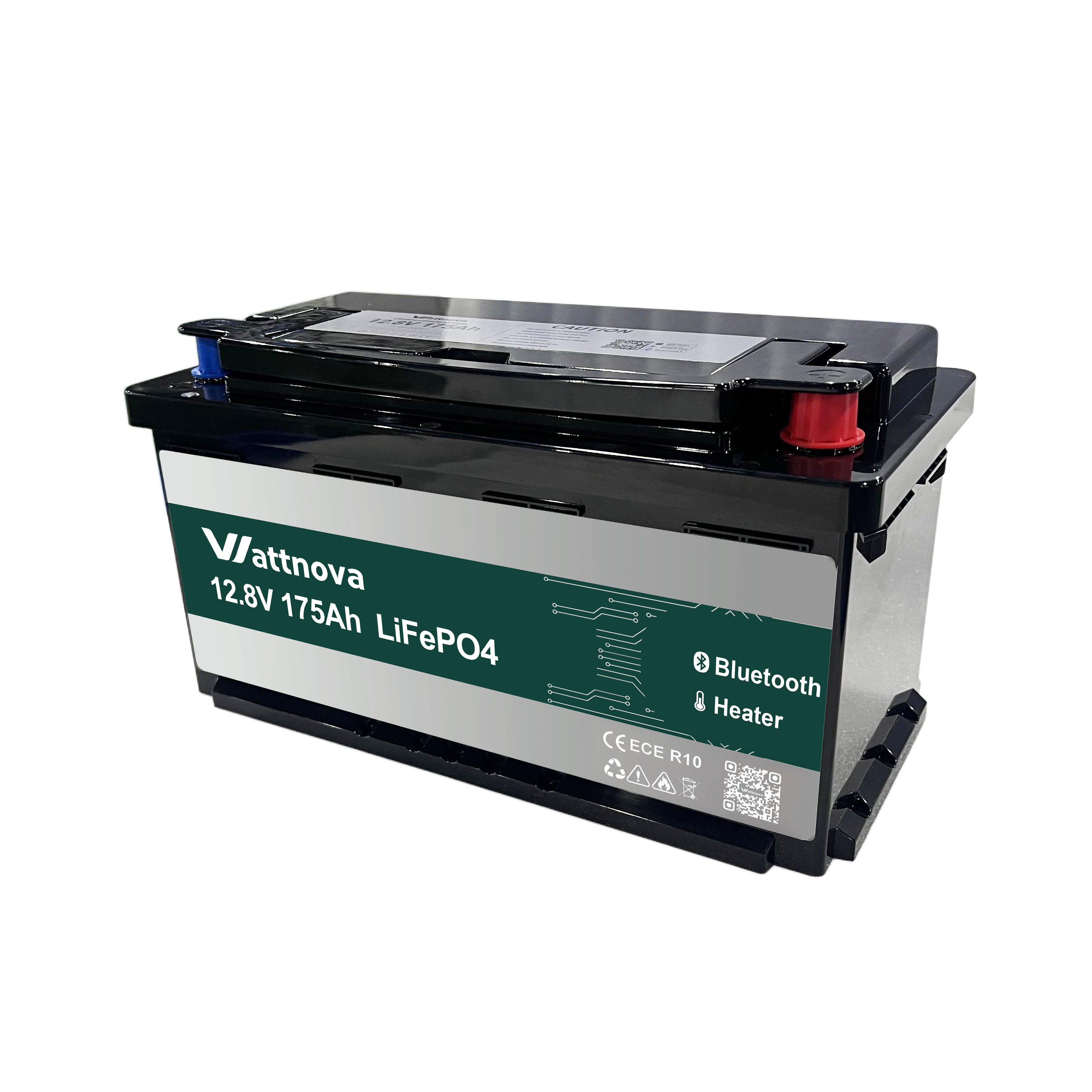

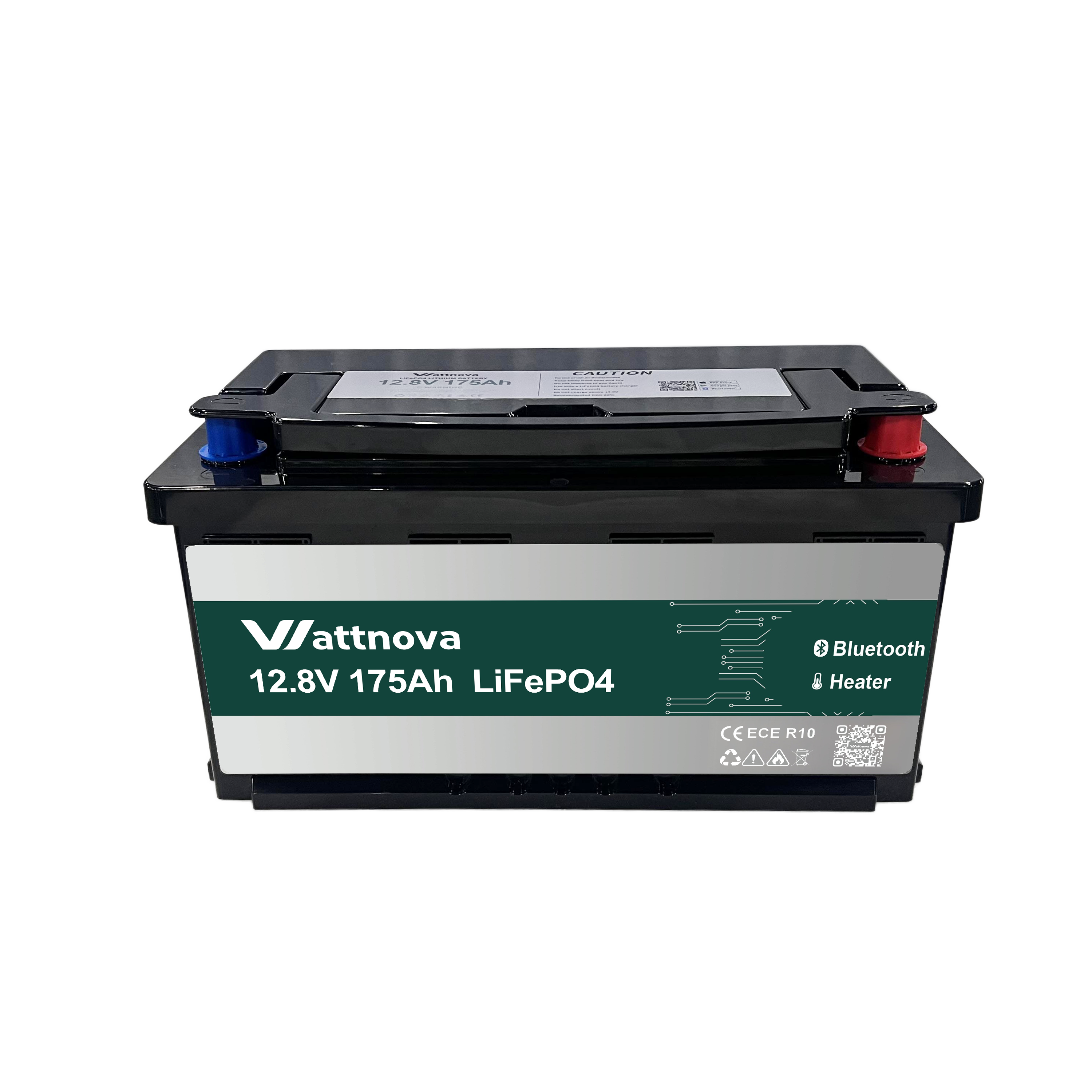

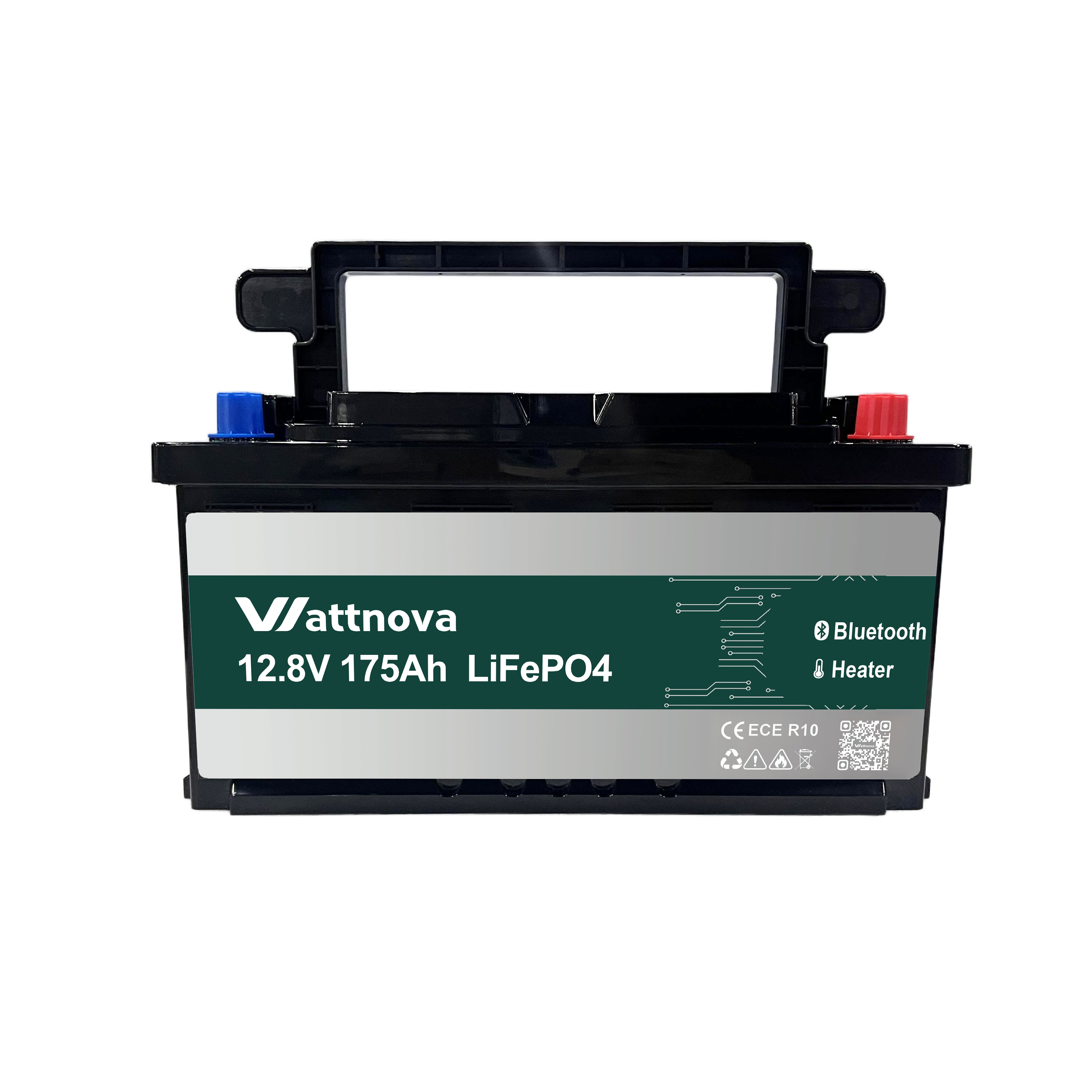

12.8V 175AH Lithium Battery LiFePO4 Smart BMS with Bluetooth Heating Motorhome Underseat IP67

Lithium Battery LifePO4 12.8V 175AH Smart BMS with Bluetooth Heating Motorhome Underseat IP67

Short Description:

· Minimum space, maximum capacity: 355*175*188mm
· Perfect for placement under the seat or in the battery compartment
· Bluetooth BMS and real-time monitoring, easily controlled via app
· Integrated heating foil, can be used at temperatures as low as -20°C
· Grade A lithium iron phosphate battery (automotive grade battery)
· More than 6000 cycle life, more than ten years of service life
· Up to 200 A continuous discharge current, shockproof and splashproof (IP67)
· Direct replacement of lead-acid batteries - plug and play
· Direct supply from German warehouse and EU certified (CE, RoHS, UN38.3)

Send email to us

Product Detail

Product Parameter

Model		12.8V 172Ah with bluetooth&heater
Nominal capacity		172Ah/2201.6Wh
Dimensions (LWH) (mm)		360178188
Weight(Kg)		15.8±1 Kg
Cycle life		>6000cycles@80%DOD
Charging Characteristics		CCCV/IU
Voltage(V)	Rated voltage(V)	12.8V
	Maximum voltage(V)	14.6V
	Minimum voltage(V)	10V
Current(A)	Continuous charging current(A)	172A
	Maximum charging current(A)	200A(1S)
	Continuous discharge current(A)	200A
	Maximum discharge current(A)	255A(3S)
Operating temperature(℃)	Charging working temperature	0~60℃
Operating temperature(℃)	Discharge working temperature	-20~65℃
Storage temperature(℃)		0~35℃
Self-discharge rate/Month		<3%
Heating function		Start heating when charging below 0℃
		Stop heating when heated to 10℃
		Do not heat during discharge
BMS		Integrated
Bluetooth Monitoring		Bluetooth 4.0 (iOS &Android app)
Ingress Protection Ratin(IP)		IP67
Case Material		ABS
Terminal（dual-purpose ）		Copper column and internal M8 thread
Application/ Interconnection		Series and parallel connection for 12V,24V,36V,48V applications.
Battery cover removable		Yes
Warranty		6-year manufacturer's warranty

Compact 12.8V 175Ah lithium battery - designed for under the seat.

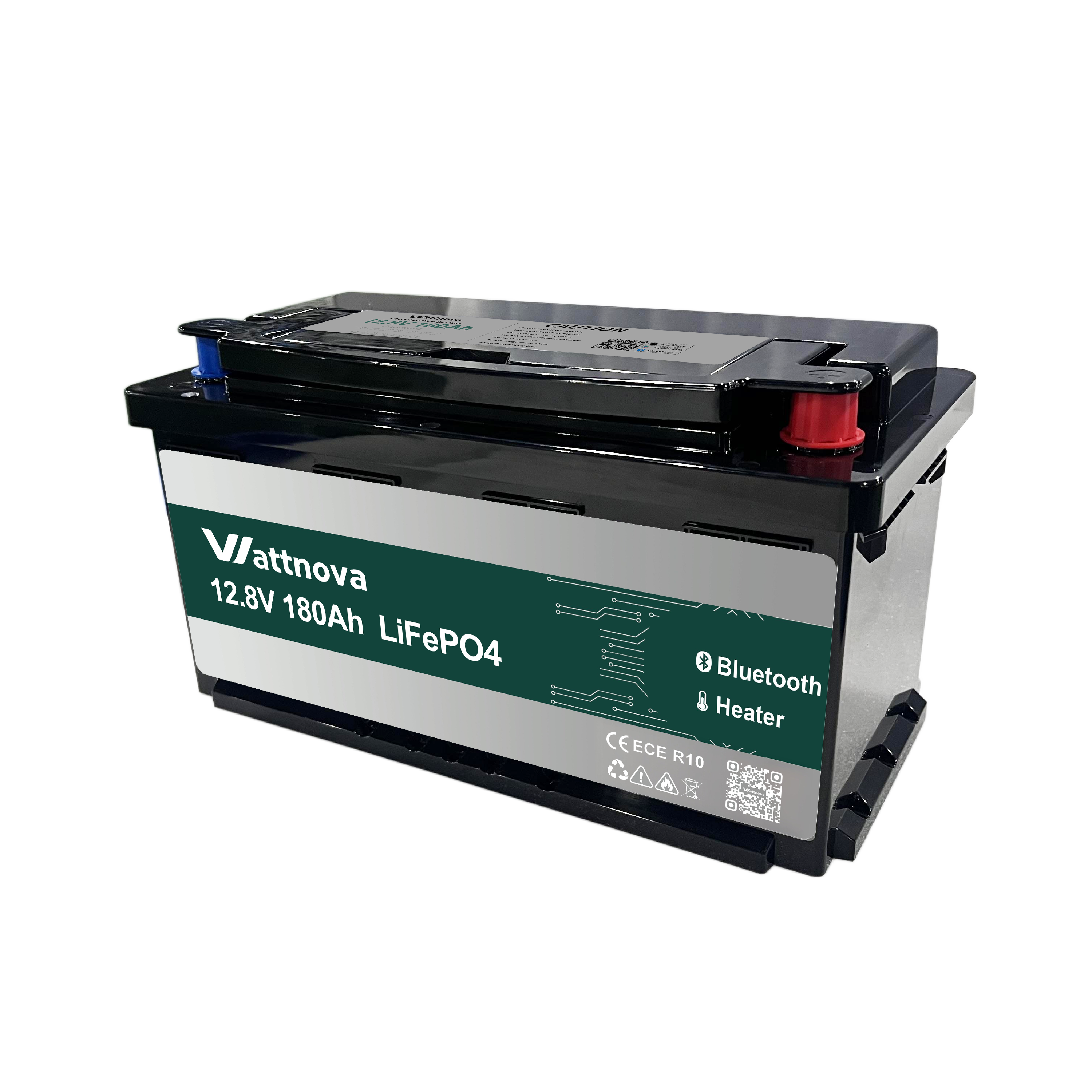

This compact 12.8V180Ah lithium battery under the seat uses automotive-grade LiFePO₄ cells, 200A high discharge + low-temperature self-heating + smart Bluetooth monitoring + dual-terminal design, simple installation, strong compatibility, and is an ideal upgrade solution for RVs such as Fiat Ducato, Citroen, Peugeot, and Volkswagen RVs.

Dual-purpose terminal design

The lithium battery adopts a copper column + M8 internal thread dual-purpose terminal design, which perfectly combines the dual advantages of high conductivity and strong compatibility: using high-quality pure copper material, excellent conductivity efficiency, low connection resistance, and easy to cope with hundreds of amperes of high current scenarios; M8 threads are compatible with standard nuts and ring terminals, and multi-line parallel connection can be achieved without adapters, making installation more flexible and efficient.

Smart BMS and Bluetooth APP control

New energy vehicles are equipped with the same level of smart BMS to protect each battery from overload, overvoltage and undervoltage.
Voltage, current, charging status, temperature, current and number of cycles can be conveniently monitored via Bluetooth on a smartphone or tablet. The APP can monitor up to 8 batteries at the same time. Ideal for marine or off-grid professionals who value remote diagnostics and status checks.

Low-temperature self-heating

High-quality internal heating film, evenly distributed and controlled by the BMS, keeps the device running at temperatures as low as -20°C, perfect for winter camping or outdoor activities in sub-zero temperatures.

Supports series-parallel connection – 12/24/36/48 V

BMS integrated series-parallel module allows batteries to be safely combined in series and parallel (up to 4 modules in each direction) for various systems such as RVs, boats, golf carts, off-road vehicles, AMP lighting control systems, etc.

Perfect lead-acid battery replacement

Compared to AGM or lead gel batteries, this lithium iron phosphate (LiFePO₄) battery is lighter (60% less) and charges faster, making it easier to use. In addition, it requires no ongoing maintenance and has excellent stability even under extreme loads, making it ideal for continuous use in marine, camping and professional applications. No memory effect, no need for full charge and discharge cycles, can directly replace lead-acid batteries.

We are your ideal partner, offering fast delivery, personalised support and comprehensive technical consulting services.
